دیتاشیت SN75451BP

SN55451B-54B, SN75451B-54B

مشخصات دیتاشیت

نام دیتاشیت SN55451B-54B, SN75451B-54B
حجم فایل 1433.542 کیلوبایت
نوع فایل pdf
تعداد صفحات 31

دانلود دیتاشیت SN55451B-54B, SN75451B-54B

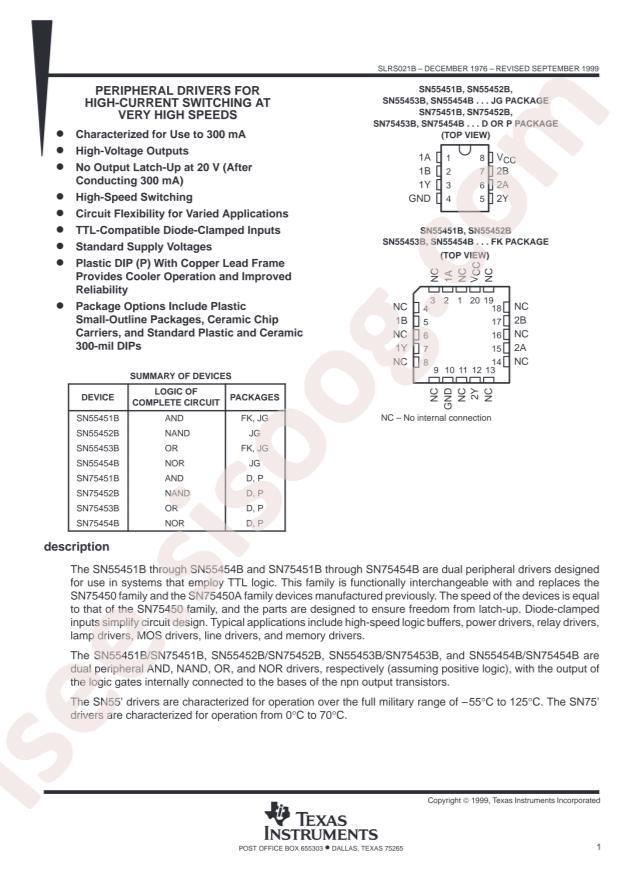

SN55451B-54B, SN75451B-54B Datasheet

مشخصات

  • Input Type: Inverting
  • Base Part Number: SN754
  • Current - Peak Output (Source, Sink): 500mA, 500mA
  • Package / Case: 8-DIP (0.300", 7.62mm)
  • Rise / Fall Time (Typ): 5ns, 7ns
  • Supplier Device Package: 8-PDIP
  • Logic Voltage - VIL, VIH: 0.8V, 2V
  • Number of Drivers: 2
  • Driven Configuration: Low-Side
  • Operating Temperature: 0°C ~ 70°C (TA)
  • Packaging: Tube
  • Channel Type: Independent
  • Voltage - Supply: 4.75V ~ 5.25V
  • Part Status: Active
  • Manufacturer: Texas Instruments
  • Series: -
  • Gate Type: N-Channel, P-Channel MOSFET
  • Mounting Type: Through Hole
  • detail: Low-Side Gate Driver IC Inverting 8-PDIP
