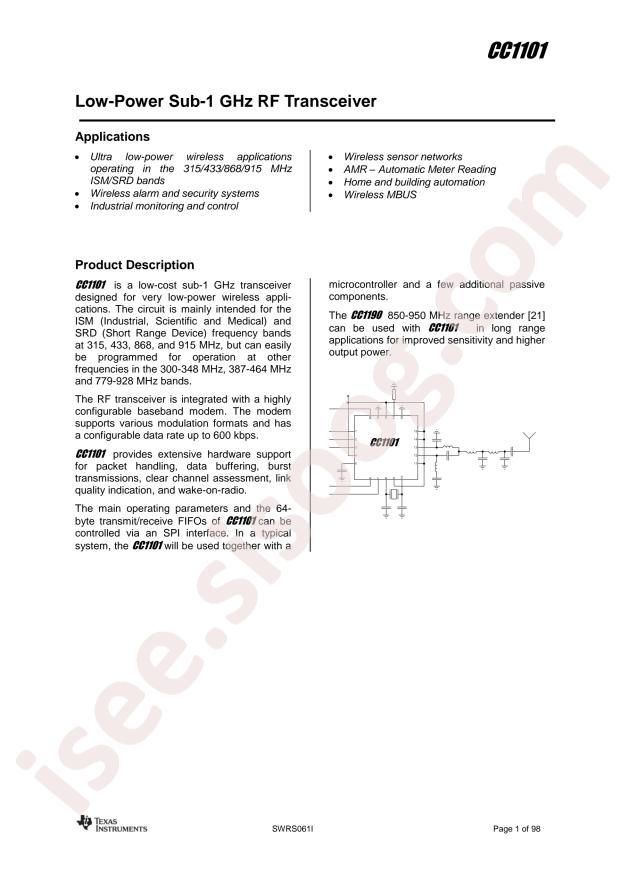

CC1101RGPR دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | CC1101RGPR |
|---|---|
| حجم فایل | 62.055 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 103 |
دانلود دیتاشیت CC1101RGPR |
دانلود دیتاشیت |
|---|
سایر مستندات
CC1101 107 pages
CC1101 Errata 14 pages
مشخصات فنی
- RoHS: true
- Category: Radio Frequency Chip/Antenna/RF Transceiver ICs
- Data Rate: 600Kbps
- Datasheet: Texas Instruments CC1101RGPR
- Interface: SPI
- Applications: General-purposeISM<1GHz
- Frequency Range: 300MHz~348MHz;779MHz~928MHz
- Receive Current: 14.3mA
- Operating Voltage: 1.8V~3.6V
- Operating Temperature: -40°C~+85°C
- Current Of Transmitting: 12.3mA
- Typical Application Frequency: 315MHz;433MHz
- Package: QFN-20-EP(4x4)
- Manufacturer: Texas Instruments
- Package / Case: 20-VFQFN Exposed Pad
- Data Rate (Max): 600kbps
- Type: TxRx Only
- Modulation: 2FSK, 4FSK, ASK, GFSK, MSK, OOK
- Packaging: Cut Tape (CT)
- Supplier Device Package: 20-QFN (4x4)
- Part Status: Active
- Power - Output: 12dBm
- Sensitivity: -116dBm
- Memory Size: -
- Base Part Number: CC1101
- Current - Transmitting: 12.3mA ~ 34.2mA
- RF Family/Standard: General ISM < 1GHz
- Current - Receiving: 14.3mA ~ 17.1mA
- Voltage - Supply: 1.8V ~ 3.6V
- Frequency: 300MHz ~ 348MHz, 387MHz ~ 464MHz, 779MHz ~ 928MHz
- Protocol: -
- Series: -
- Mounting Type: Surface Mount
- Serial Interfaces: SPI
- detail: IC RF TxRx Only General ISM < 1GHz 300MHz ~ 348MHz, 387MHz ~ 464MHz, 779MHz ~ 928MHz 20-VFQFN Exposed Pad
