REF5050AIDR Datasheet
Datasheet specifications
| Datasheet's name | REF5050AIDR |
|---|---|
| File size | 91.485 KB |
| File type | |
| Number of pages | 29 |
Download Datasheet REF5050AIDR |
Download Datasheet |
|---|
Other documentations
Analog Signal Chain Guide 11 pages
REF5020,25,30,40,45,50 Datasheet 40 pages
Technical specifications
- RoHS: true
- Category: Power Supply Chip/Voltage References
- Datasheet: Texas Instruments REF5050AIDR
- Tolerance: ±0.1%
- Output Type: Fixed
- Input Voltage: 5.2V~18V
- Output Current: 10mA
- Output Voltage: 5V
- Reference Type: series connection
- Supply Current: 1.2mA
- Operating Temperature: -40°C~+125°C@(Ta)
- Temperature Coefficient: 8ppm/°C

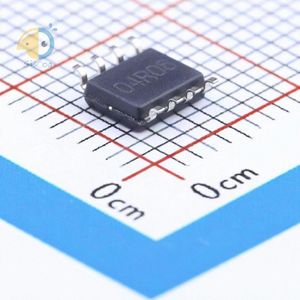

- Package: SOP-8
- Manufacturer: Texas Instruments
- Voltage - Output (Min/Fixed): 5V
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Current - Supply: 1.2mA
- Noise - 0.1Hz to 10Hz: 3µVp-p
- Noise - 10Hz to 10kHz: -
- Current - Output: 10mA
- Packaging: Cut Tape (CT)
- Supplier Device Package: 8-SOIC
- Part Status: Active
- Base Part Number: REF505
- Series: -
- Mounting Type: Surface Mount
- Voltage - Input: 5.2V ~ 18V
- detail: Series Voltage Reference IC ±0.1% 8-SOIC
