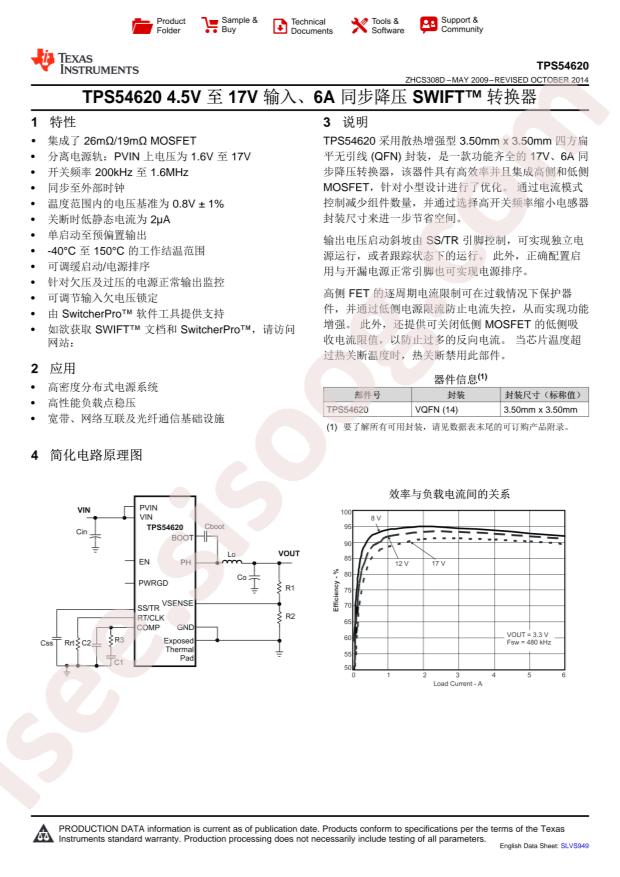

دیتاشیت TPS54620RGYR
مشخصات دیتاشیت
| نام دیتاشیت |
TPS54620
|
| حجم فایل |
2201.619
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
47
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
Step-down type
-
Topology:
Step-down
-
Datasheet:
Texas Instruments TPS54620RGYR
-
Output Type:
Adjustable
-
Input Voltage:
4.5V~17V
-
Output Voltage:
0.8V~15V
-
Number of Outputs:
1
-
Switching Frequency:
1.6MHz
-
Output Current (Max):
6A
-
Operating Temperature:
-40°C~+150°C@(TJ)
-
Synchronous Rectification:
Yes
-
Package:
QFN-14-EP(3.5x3.5)
-
Manufacturer:
Texas Instruments
-
Frequency - Switching:
200kHz ~ 1.6MHz
-
Package / Case:
14-VFQFN Exposed Pad
-
Supplier Device Package:
14-VQFN (3.5x3.5)
-
Voltage - Output (Min/Fixed):
0.8V
-
Current - Output:
6A
-
Output Configuration:
Positive
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Voltage - Output (Max):
15V
-
Series:
SWIFT™
-
Mounting Type:
Surface Mount
-
Voltage - Input (Max):
17V
-
Base Part Number:
TPS546
-
Voltage - Input (Min):
4.5V
-
Synchronous Rectifier:
Yes
-
detail:
Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 6A 14-VFQFN Exposed Pad
