دیتاشیت BAR42FILM
مشخصات دیتاشیت
| نام دیتاشیت | BAR42FILM, BAR43FILM |
|---|---|
| حجم فایل | 122.179 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 7 |
دانلود دیتاشیت BAR42FILM, BAR43FILM |

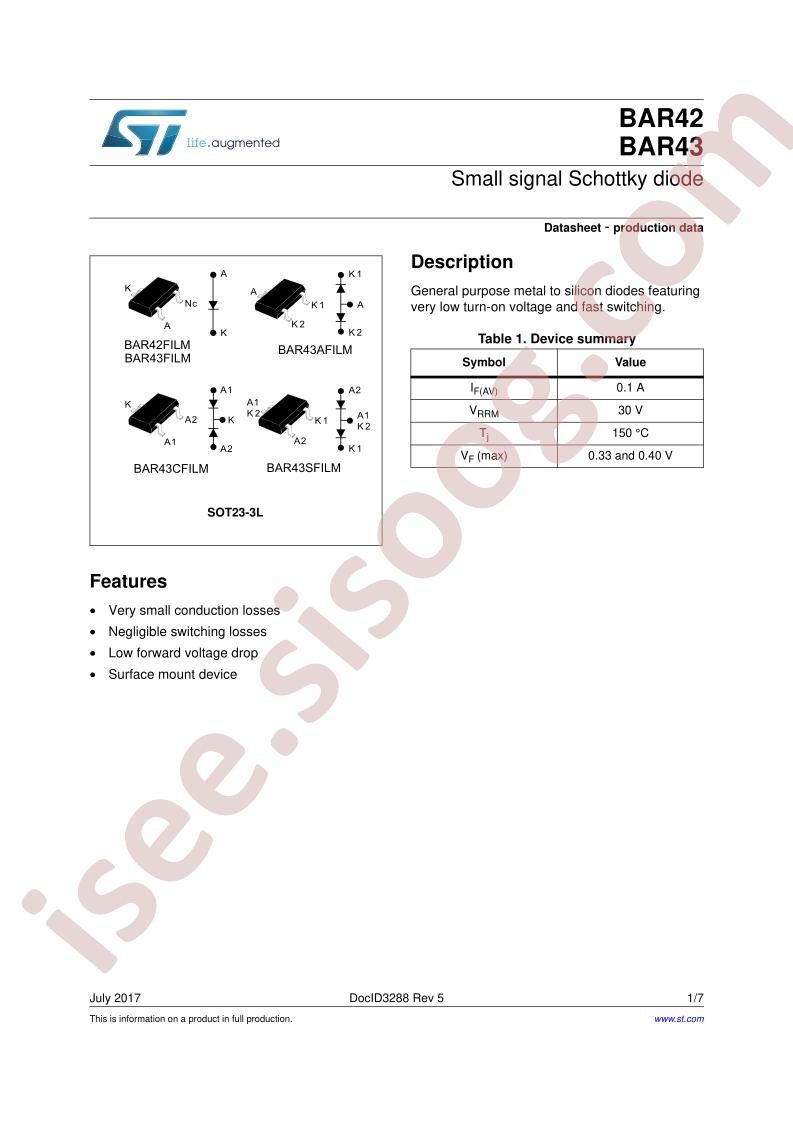

BAR42FILM, BAR43FILM Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Diodes/Schottky Barrier Diodes (SBD)
- Datasheet: STMicroelectronics BAR42FILM
- Reverse Voltage (Vr): 30V
- Forward Voltage (Vf@If): 1V@100mA
- Average Rectified Current (Io): 100mA
- Package: SOT-23-3L
- Manufacturer: STMicroelectronics
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30V
- Current - Average Rectified (Io): 100mA
- Voltage - Forward (Vf) (Max) @ If: 1V @ 100mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 5ns
- Current - Reverse Leakage @ Vr: 500nA @ 30V
- Capacitance @ Vr, F: 7pF @ 1V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SOT-23-3
- Operating Temperature - Junction: 150°C (Max)
- Base Part Number: BAR42
- detail: Diode Schottky 30V 100mA Surface Mount SOT-23-3
