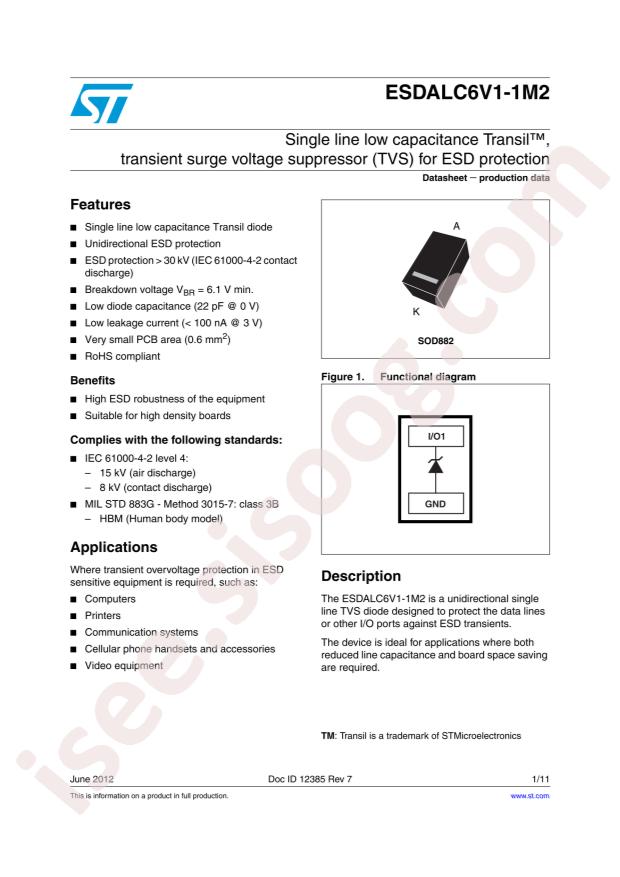

ESDALC6V1-1M2 Datasheet

ESDALC6V1-1M2

Datasheet specifications

Datasheet's name ESDALC6V1-1M2
File size 66.469 KB
File type pdf
Number of pages 11

Download Datasheet ESDALC6V1-1M2

Download Datasheet

Other documentations

ESDALC6V1-1M2 11 pages

ESDALC6V1-1M2 3 pages

Technical specifications

  • RoHS: true
  • Category: TVS/Fuse/Board Level Protection/ESD Protection Devices
  • Datasheet: Leiditech ESDALC6V1-1M2
  • Package: SOD-923
  • Manufacturer: Leiditech
  • Clamping Voltage@Ipp: -
  • Operating Temperature: -40°C~+125°C@(Tj)
  • Breakdown Voltage (VBR): 6.1V
  • Peak Pulse Power(Ppp)@8/20us: 50W
  • Junction Capacitance(Cj)@1MHz: -
  • Peak Pulse Current(Ipp)@8/20us: -
  • Reverse Stand-Off Voltage (Vrwm): 3V
  • Series: ESDA, TRANSIL™
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Type: Zener
  • Unidirectional Channels: 1
  • Voltage - Reverse Standoff (Typ): 3V
  • Voltage - Breakdown (Min): 6.1V
  • Voltage - Clamping (Max) @ Ipp: -
  • Current - Peak Pulse (10/1000µs): -
  • Power - Peak Pulse: 50W
  • Power Line Protection: No
  • Applications: General Purpose
  • Capacitance @ Frequency: -
  • Mounting Type: Surface Mount
  • Package / Case: SOD-882
  • Supplier Device Package: SOD-882
  • Base Part Number: ESDALC6V1
  • detail: Clamp Ipp Tvs Diode Surface Mount SOD-882
