دیتاشیت LDL1117S50R

مشخصات دیتاشیت

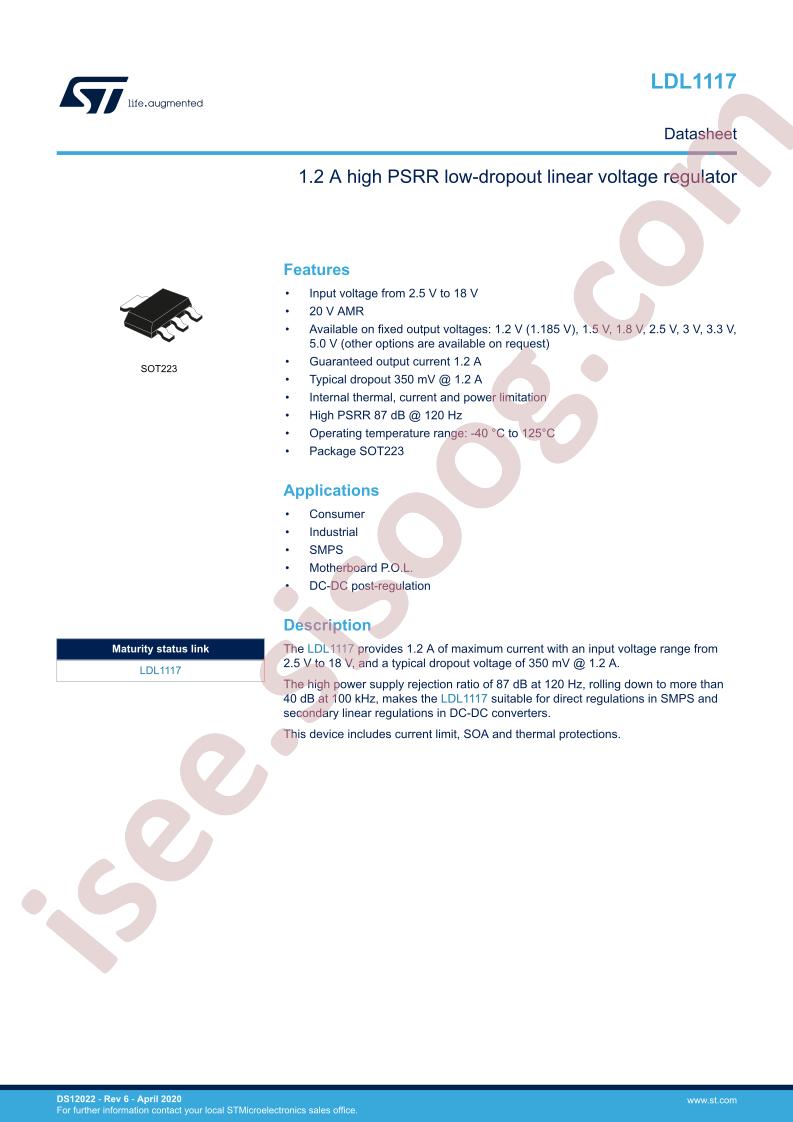

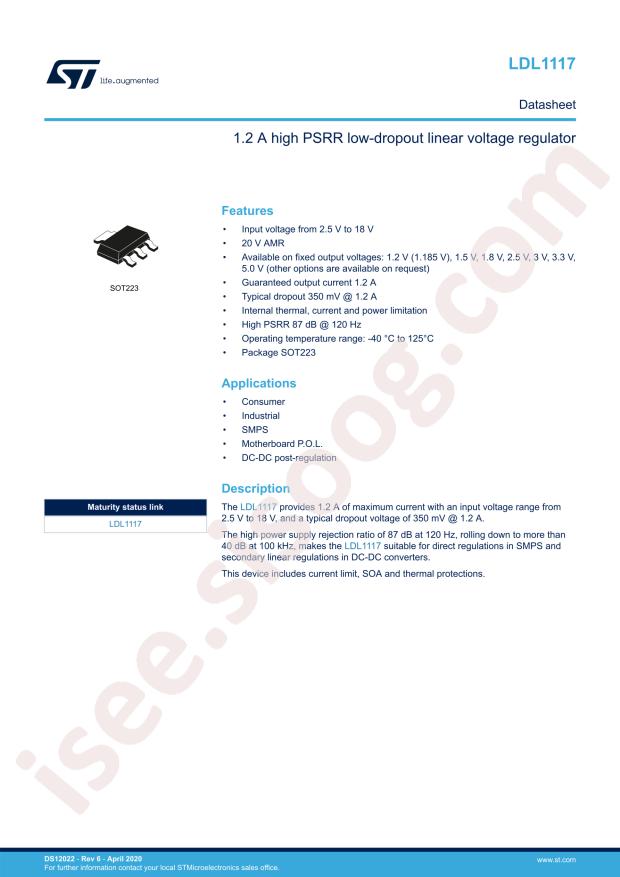

دانلود دیتاشیت LDL1117 Datasheet	LDL1117 Datasheet Datasheet

RoHS: true
Category: Power Supply Chip/Linear Voltage Regulators (LDO)
Datasheet: STMicroelectronics LDL1117S50R
Output Current: 1.2A
Output Voltage: 5V
Dropout Voltage: 0.6V@(1.2A)
Output Polarity: positive
Number of Outputs: 1
Maximum Input Voltage: 18V
Operating Temperature: -40°C~+125°C@(Tj)
Quiescent Current (Ground Current): 500uA
Package: SOT-223
Manufacturer: STMicroelectronics
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 18V
Voltage - Output (Min/Fixed): 5V
Voltage - Output (Max): -
Voltage Dropout (Max): 0.6V @ 1.2A
Current - Output: 1.2A
Current - Quiescent (Iq): 500µA
PSRR: 87dB ~ 65dB (120Hz ~ 100kHz)
Control Features: -
Protection Features: Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Mounting Type: Surface Mount
Package / Case: TO-261-4, TO-261AA
Supplier Device Package: SOT-223
Base Part Number: LDL1117
detail: Linear Voltage Regulator IC 1 Output 1.2A SOT-223
