دیتاشیت ESDA6V1SC5

ESDAxxSCx

مشخصات دیتاشیت

نام دیتاشیت ESDAxxSCx
حجم فایل 312.968 کیلوبایت
نوع فایل pdf
تعداد صفحات 9

دانلود دیتاشیت ESDAxxSCx

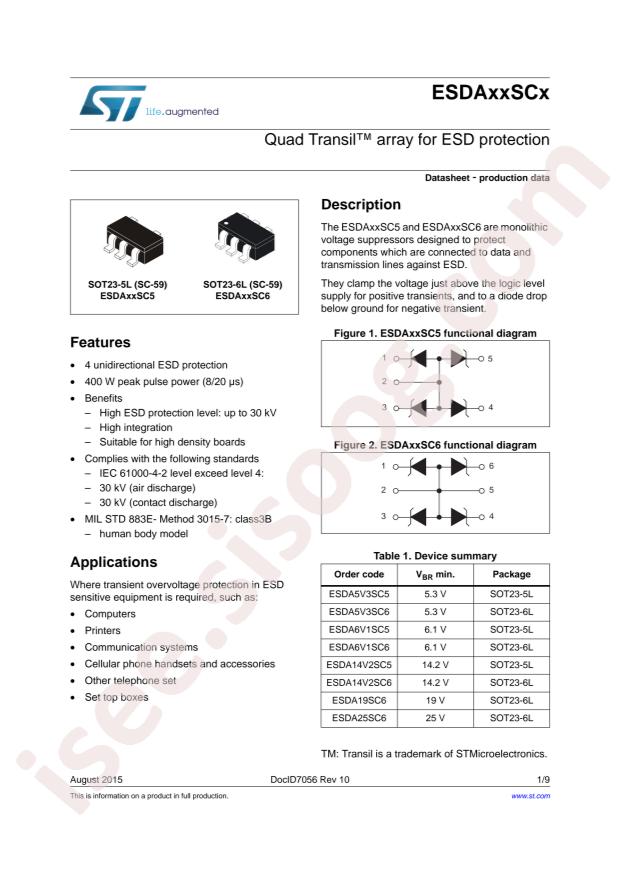

ESDAxxSCx Datasheet

مشخصات

  • RoHS: true
  • Category: TVS/Fuse/Board Level Protection/ESD Protection Devices
  • Datasheet: STMicroelectronics ESDA6V1SC5
  • Number of Lines: 4
  • Clamping Voltage@Ipp: 6.1V
  • Operating Temperature: -40°C~+125°C@(Ta)
  • Breakdown Voltage (VBR): 6.1V
  • Peak Pulse Power(Ppp)@8/20us: 400W
  • Reverse Stand-Off Voltage (Vrwm): 5.25V
  • Package: SOT-23-5
  • Manufacturer: STMicroelectronics
  • Series: ESDA, TRANSIL™
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Type: Zener
  • Unidirectional Channels: 4
  • Voltage - Reverse Standoff (Typ): 5.25V
  • Voltage - Breakdown (Min): 6.1V
  • Voltage - Clamping (Max) @ Ipp: -
  • Current - Peak Pulse (10/1000µs): -
  • Power - Peak Pulse: 400W
  • Power Line Protection: No
  • Applications: General Purpose
  • Capacitance @ Frequency: -
  • Mounting Type: Surface Mount
  • Package / Case: SC-74A, SOT-753
  • Supplier Device Package: SOT-23-5L
  • Base Part Number: ESDA6
  • detail: Clamp Ipp Tvs Diode Surface Mount SOT-23-5L
