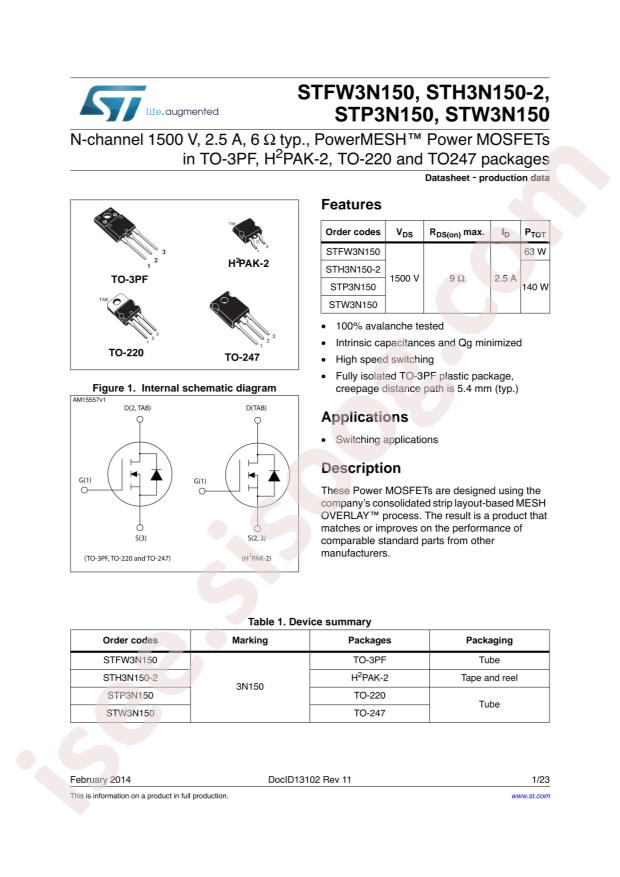

STW3N150 Datasheet
Datasheet specifications
|
Datasheet's name
|
STW3N150
|
|
File size
|
69.999
KB
|
|
File type
|
pdf
|
|
Number of pages
|
23
|
Technical specifications
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
STMicroelectronics STW3N150
-
Power Dissipation (Pd):
140W
-
Total Gate Charge (Qg@Vgs):
29.3nC@10V
-
Drain Source Voltage (Vdss):
1.5kV
-
Input Capacitance (Ciss@Vds):
939pF@25V
-
Continuous Drain Current (Id):
2.5A
-
Gate Threshold Voltage (Vgs(th)@Id):
5V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
9Ω@10V,1.3A
-
Package:
TO-247
-
Manufacturer:
STMicroelectronics
-
Series:
PowerMESH™
-
Packaging:
Tube
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
1500V
-
Current - Continuous Drain (Id) @ 25°C:
2.5A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
9Ohm @ 1.3A, 10V
-
Vgs(th) (Max) @ Id:
5V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
29.3nC @ 10V
-
Vgs (Max):
±30V
-
Input Capacitance (Ciss) (Max) @ Vds:
939pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
140W (Tc)
-
Operating Temperature:
150°C (TJ)
-
Mounting Type:
Through Hole
-
Supplier Device Package:
TO-247-3
-
Package / Case:
TO-247-3
-
Base Part Number:
STW3N
