دیتاشیت TIP47

TIP47-50

مشخصات دیتاشیت

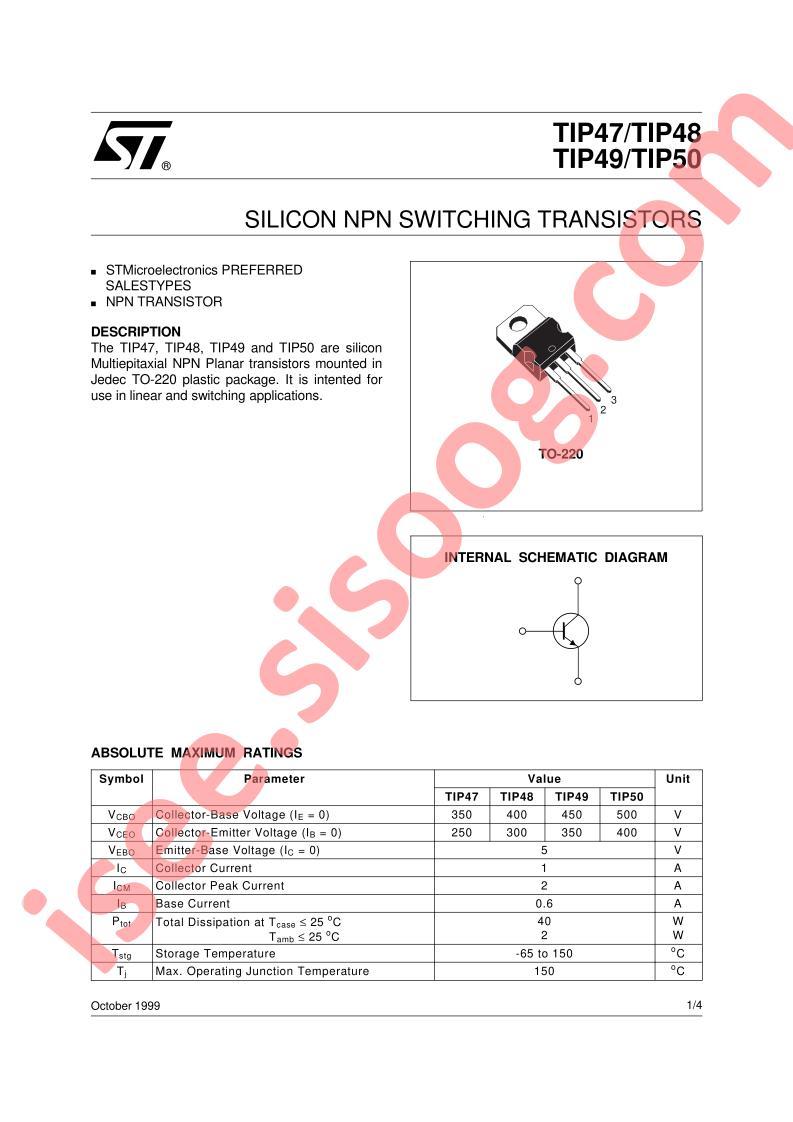

نام دیتاشیت TIP47-50
حجم فایل 48.755 کیلوبایت
نوع فایل pdf
تعداد صفحات 4

دانلود دیتاشیت TIP47-50

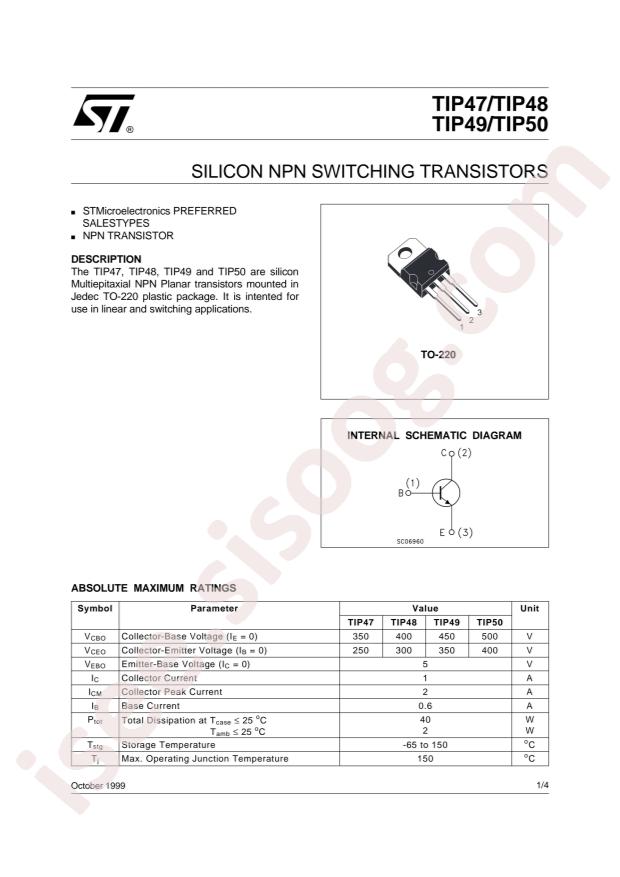

TIP47-50 Datasheet

مشخصات

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
  • Transistor Type: NPN
  • Collector Current (Ic): 1A
  • Collector-Emitter Breakdown Voltage (Vceo): 250V
  • Package: TO-220
  • Manufacturer: SPTECH
  • Datasheet: STMicroelectronics TIP47
  • Operating Temperature: +150°C@(Tj)
  • Power Dissipation (Pd): 2W
  • Transition Frequency (fT): 10MHz
  • DC Current Gain (hFE@Ic,Vce): 30@300mA,10V
  • Collector Cut-Off Current (Icbo): 1mA
  • Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 1V@1A,200mA
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Current - Collector (Ic) (Max): 1A
  • Voltage - Collector Emitter Breakdown (Max): 250V
  • Vce Saturation (Max) @ Ib, Ic: 1V @ 200mA, 1A
  • Current - Collector Cutoff (Max): 1mA
  • DC Current Gain (hFE) (Min) @ Ic, Vce: 30 @ 300mA, 10V
  • Power - Max: 2W
  • Frequency - Transition: 10MHz
  • Mounting Type: Through Hole
  • Package / Case: TO-220-3
  • Supplier Device Package: TO-220AB
  • Base Part Number: TIP47
  • detail: Bipolar (BJT) Transistor NPN 250V 1A 10MHz 2W Through Hole TO-220AB
