دیتاشیت DRV8301DCAR
مشخصات دیتاشیت

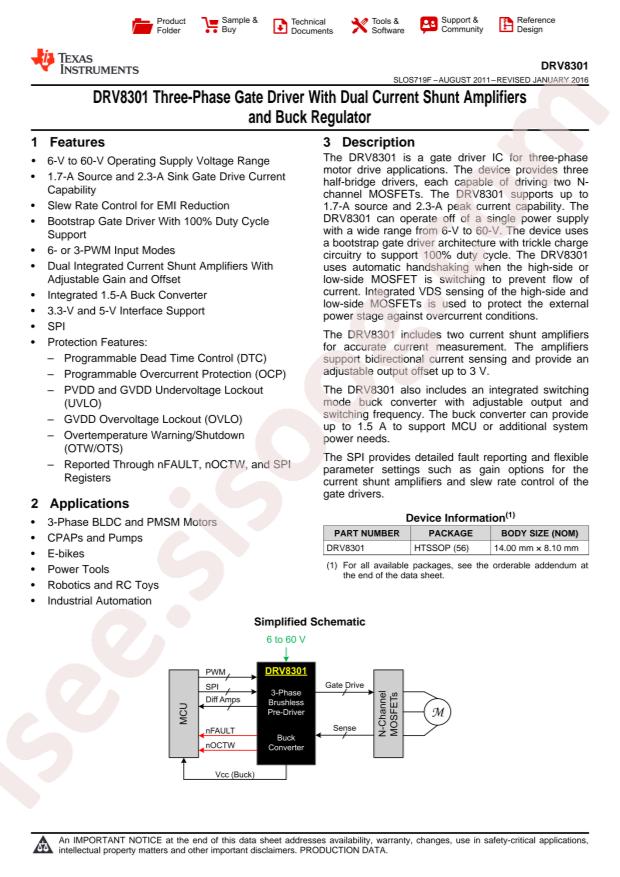

| نام دیتاشیت | DRV8301 Datasheet |
|---|---|
| حجم فایل | 2581.845 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 39 |
دانلود دیتاشیت DRV8301 Datasheet |
DRV8301 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Type: 无刷直流BLDC
- Category: Power Supply Chip/Motor Driver ICs
- Datasheet: Texas Instruments DRV8301DCAR
- Interface: SPI,STEP/DIR
- Output Current: -
- Supply Voltage: 6V~60V
- Operating Temperature: -40°C~+125°C@(Ta)
- Package: HTSSOP-56-6mm
- Manufacturer: Texas Instruments
- Package / Case: 56-PowerTFSOP (0.240", 6.10mm Width)
- Part Status: Active
- Base Part Number: DRV8301
- Current - Output: -
- Series: -
- Voltage - Supply: 6V ~ 60V
- Technology: Power MOSFET
- Mounting Type: Surface Mount
- Voltage - Load: -
- Motor Type - AC, DC: Brushless DC (BLDC)
- Motor Type - Stepper: -
- Packaging: Cut Tape (CT)
- Function: Controller - Commutation, Direction Management
- Output Configuration: Pre-Driver - Half Bridge (3)
- Supplier Device Package: 56-HTSSOP
- Step Resolution: -
- Applications: General Purpose
- detail: Motor Driver Power MOSFET SPI 56-HTSSOP
