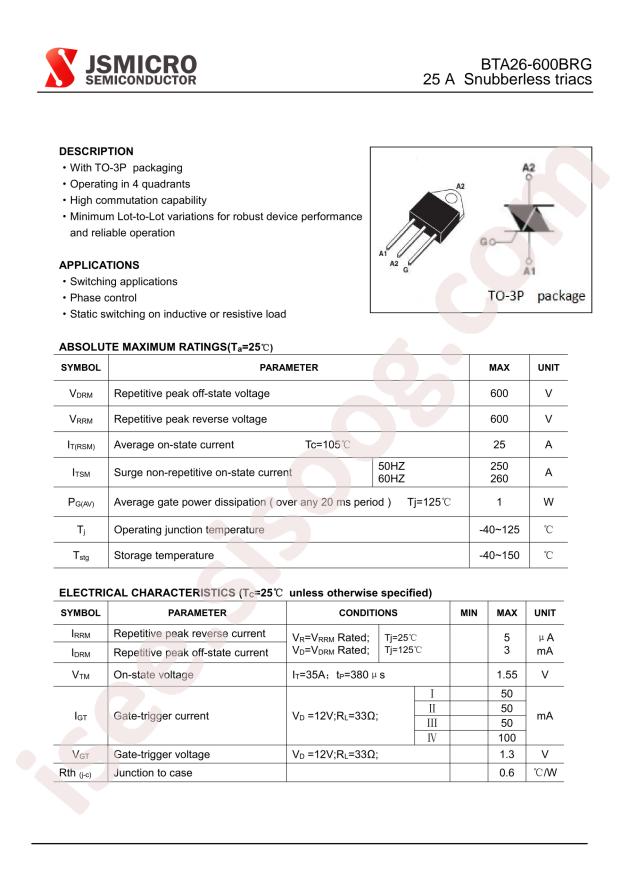

BTA26-600BRG Datasheet

BTA26-600BRG

Datasheet specifications

Datasheet's name BTA26-600BRG
File size 77.365 KB
File type pdf
Number of pages 2

Download Datasheet BTA26-600BRG

Download Datasheet

Other documentations

BT(A,B)2x, T25 12 pages

BTA24-800CWRG 12 pages

Technical specifications

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/TRIACs
  • SCR Type: General-purpose
  • Datasheet: STMicroelectronics BTA26-600BRG
  • Holding Current (Ih): 80mA
  • Operating Temperature: -40°C~+125°C@(Tj)
  • Gate Trigger Current(Igt): 50mA
  • Gate Trigger Voltage (Vgt): 1.3V
  • RMS On-State Current(It (rms)): 25A
  • Peak Repetitive Off?State Voltage (Vdrm): 600V
  • Package: TOP-3
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Triac Type: Standard
  • Voltage - Off State: 600V
  • Current - On State (It (RMS)) (Max): 25A
  • Voltage - Gate Trigger (Vgt) (Max): 1.3V
  • Current - Non Rep. Surge 50, 60Hz (Itsm): 250A, 260A
  • Current - Gate Trigger (Igt) (Max): 50mA
  • Current - Hold (Ih) (Max): 80mA
  • Configuration: Single
  • Mounting Type: Through Hole
  • Package / Case: TOP-3 Insulated
  • Supplier Device Package: TOP3
  • Base Part Number: BTA26
  • detail: TRIAC Standard 600V 25A Through Hole TOP3
