دیتاشیت TDE1798DP

TDE1798

مشخصات دیتاشیت

نام دیتاشیت TDE1798
حجم فایل 2021.573 کیلوبایت
نوع فایل pdf
تعداد صفحات 14

دانلود دیتاشیت TDE1798

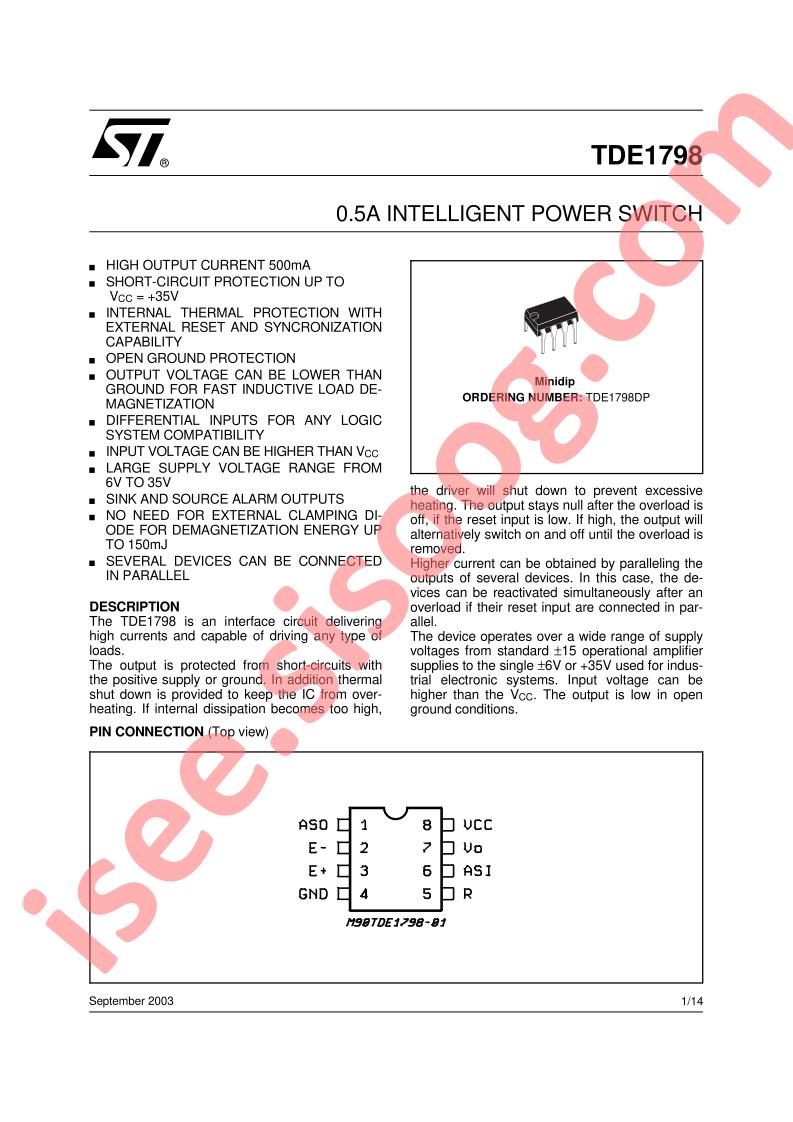

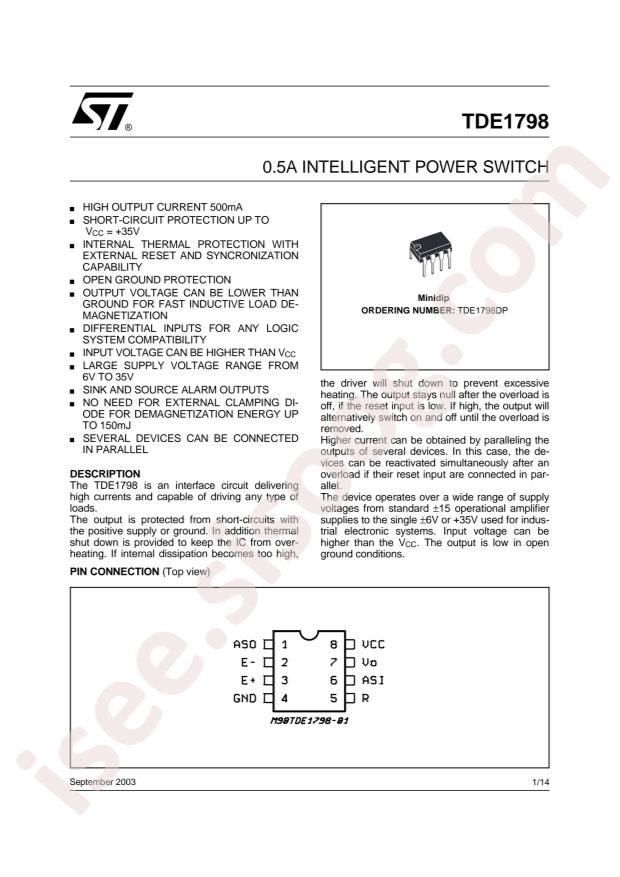

TDE1798 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Power Distribution Switches
  • Datasheet: STMicroelectronics TDE1798DP
  • Input Voltage: 6V~35V
  • Output Current: 500mA
  • Number of Outputs: 1
  • Operating Temperature -: -25°C~+85°C
  • Package: DIP-8
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Switch Type: General Purpose
  • Ratio - Input:Output: 1:1
  • Output Configuration: High Side
  • Output Type: Bipolar
  • Interface: On/Off
  • Voltage - Load: 6V ~ 35V
  • Voltage - Supply (Vcc/Vdd): Not Required
  • Current - Output (Max): 500mA
  • Rds On (Typ): -
  • Input Type: Inverting, Non-Inverting
  • Features: -
  • Fault Protection: Over Temperature
  • Operating Temperature: -25°C ~ 85°C (TA)
  • Mounting Type: Through Hole
  • Supplier Device Package: 8-Mini DIP
  • Package / Case: 8-DIP (0.300", 7.62mm)
  • Base Part Number: TDE1798
  • detail: Power Switch/Driver 1:1 Bipolar 500mA 8-Mini DIP
