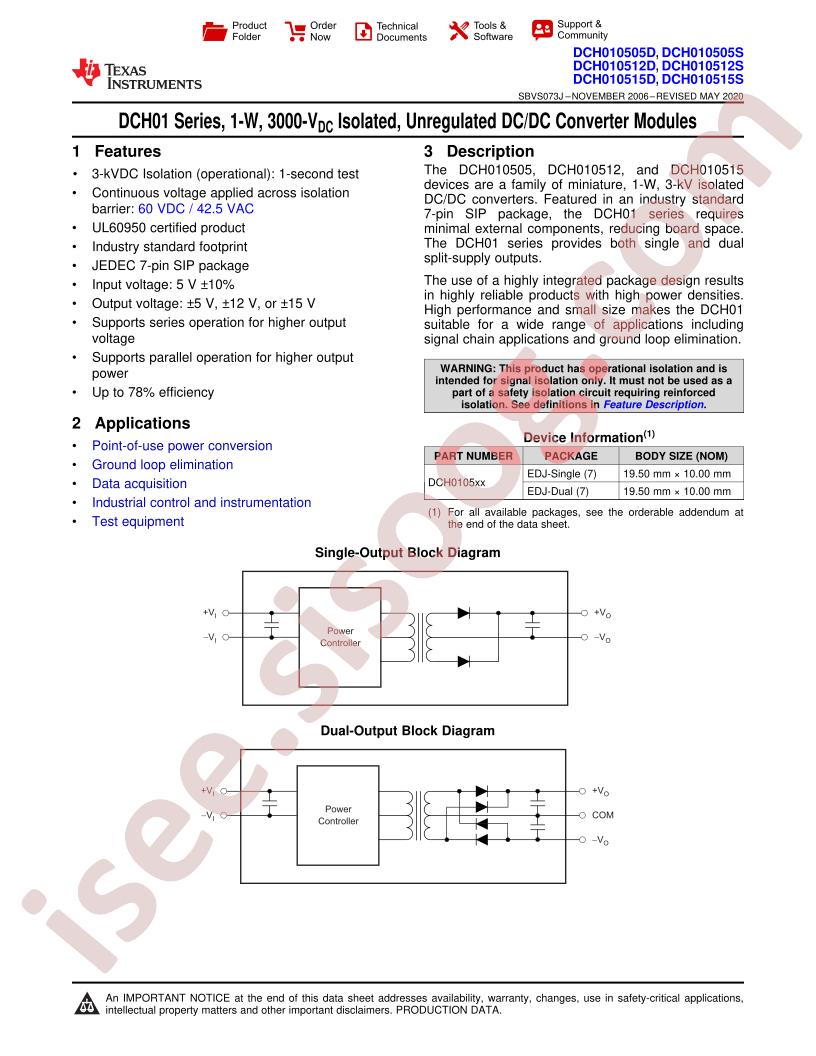

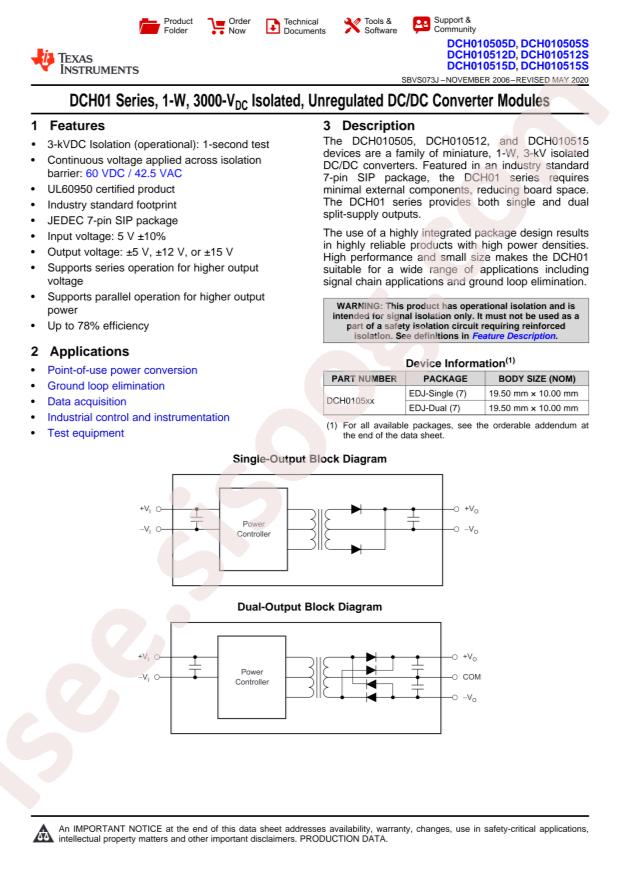

دیتاشیت DCH010515DN7
مشخصات دیتاشیت
| نام دیتاشیت |
DCH01 Series
|
| حجم فایل |
700.042
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
22
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Datasheet:
Texas Instruments DCH010515DN7
-
Package:
SIP-5
-
Manufacturer:
Texas Instruments
-
Type:
Isolated Module
-
Packaging:
Tray
-
Mounting Type:
Through Hole
-
Power (Watts):
1W
-
Voltage - Output 3:
-
-
Voltage - Output 1:
15V
-
Operating Temperature:
-40°C ~ 85°C
-
Applications:
ITE (Commercial)
-
Size / Dimension:
0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm)
-
Voltage - Output 2:
-15V
-
Package / Case:
7-SIP Module, 5 Leads
-
Efficiency:
76%
-
Voltage - Input (Min):
4.5V
-
Voltage - Isolation:
3kV
-
Base Part Number:
DCH010515
-
Part Status:
Active
-
Series:
DCH01 (1W)
-
Current - Output (Max):
33mA, 33mA
-
Features:
-
-
Number of Outputs:
2
-
Voltage - Input (Max):
5.5V
