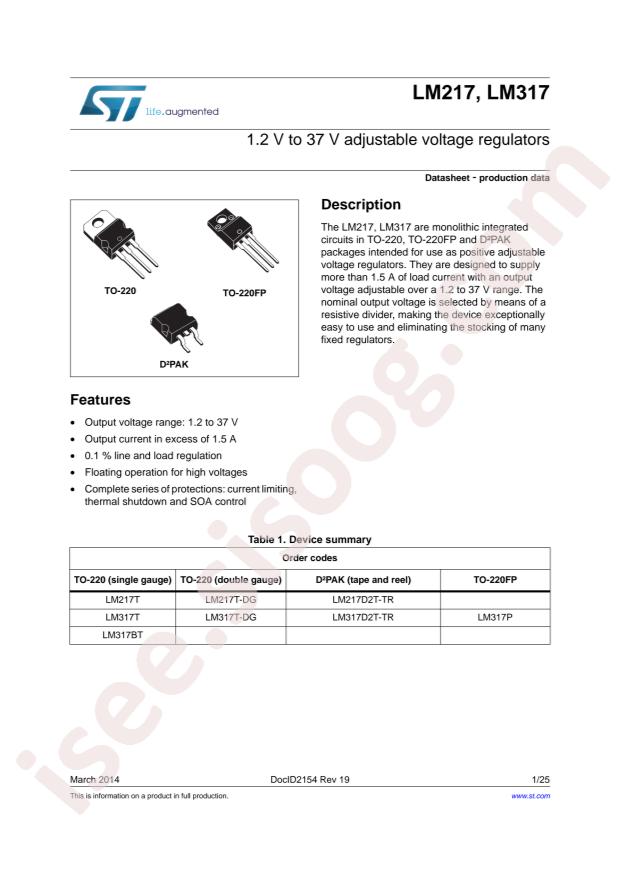

دیتاشیت LM217T
مشخصات دیتاشیت
| نام دیتاشیت |
LM217, LM317
|
| حجم فایل |
1011.916
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
31
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
STMicroelectronics LM217T
-
Output Type:
Adjustable
-
Output Current:
1.5A
-
Output Voltage:
1.2V~37V
-
Dropout Voltage:
-
-
Output Polarity:
Positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
40V
-
Operating Temperature:
-25°C~+150°C
-
Power Supply Rejection Ratio (PSRR):
80dB@(120Hz)
-
Package:
TO-220
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Output Configuration:
Positive
-
Number of Regulators:
1
-
Voltage - Input (Max):
40V
-
Voltage - Output (Min/Fixed):
1.2V
-
Voltage - Output (Max):
37V
-
Voltage Dropout (Max):
-
-
Current - Output:
1.5A
-
PSRR:
80dB ~ 65dB (120Hz)
-
Control Features:
-
-
Protection Features:
Over Current, Over Temperature
-
Mounting Type:
Through Hole
-
Package / Case:
TO-220-3
-
Supplier Device Package:
TO-220AB
-
Base Part Number:
LM217
-
detail:
Linear Voltage Regulator IC 1 Output 1.5A TO-220AB
