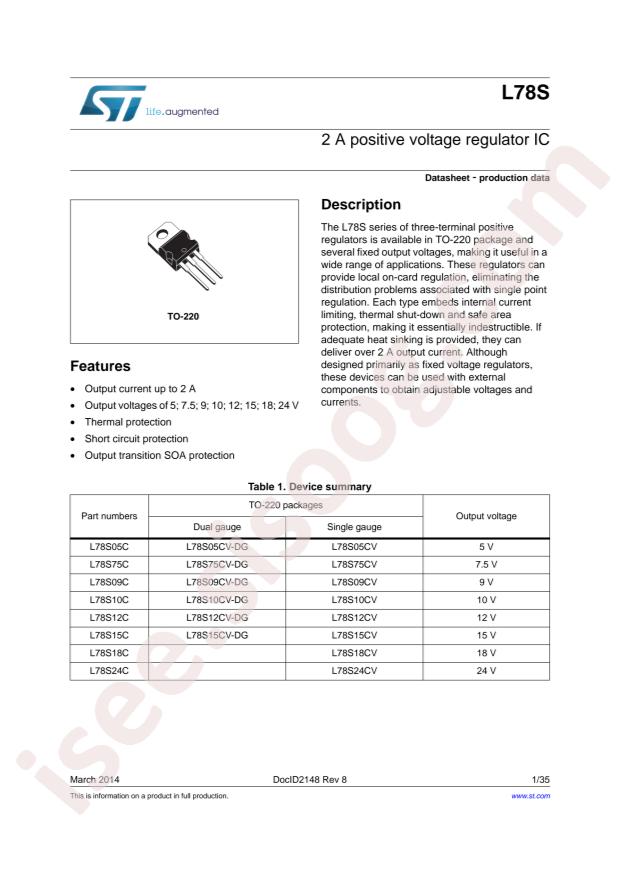

L78S05CV دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
L78S05CV
|
|
حجم فایل
|
64.525
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
35
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
STMicroelectronics L78S05CV
-
Output Type:
Fixed
-
Output Current:
2A
-
Output Voltage:
5V
-
Dropout Voltage:
-
-
Output Polarity:
Positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
35V
-
Operating Temperature:
0°C~+150°C
-
Quiescent Current (Ground Current):
8mA
-
Power Supply Rejection Ratio (PSRR):
54dB@(120Hz)
-
Package:
TO-220
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Output Configuration:
Positive
-
Number of Regulators:
1
-
Voltage - Input (Max):
35V
-
Voltage - Output (Min/Fixed):
5V
-
Voltage - Output (Max):
-
-
Voltage Dropout (Max):
-
-
Current - Output:
2A
-
Current - Quiescent (Iq):
8mA
-
PSRR:
54dB (120Hz)
-
Control Features:
-
-
Protection Features:
Over Current, Over Temperature, Short Circuit
-
Mounting Type:
Through Hole
-
Package / Case:
TO-220-3
-
Supplier Device Package:
TO-220AB
-
Base Part Number:
L78S05
-
detail:
Linear Voltage Regulator IC 1 Output 2A TO-220AB
