دیتاشیت BQ24105RHLR
مشخصات دیتاشیت
| نام دیتاشیت | BQ2410x(A), 11x(A) |
|---|---|
| حجم فایل | 1884.206 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 46 |
دانلود دیتاشیت BQ2410x(A), 11x(A) |

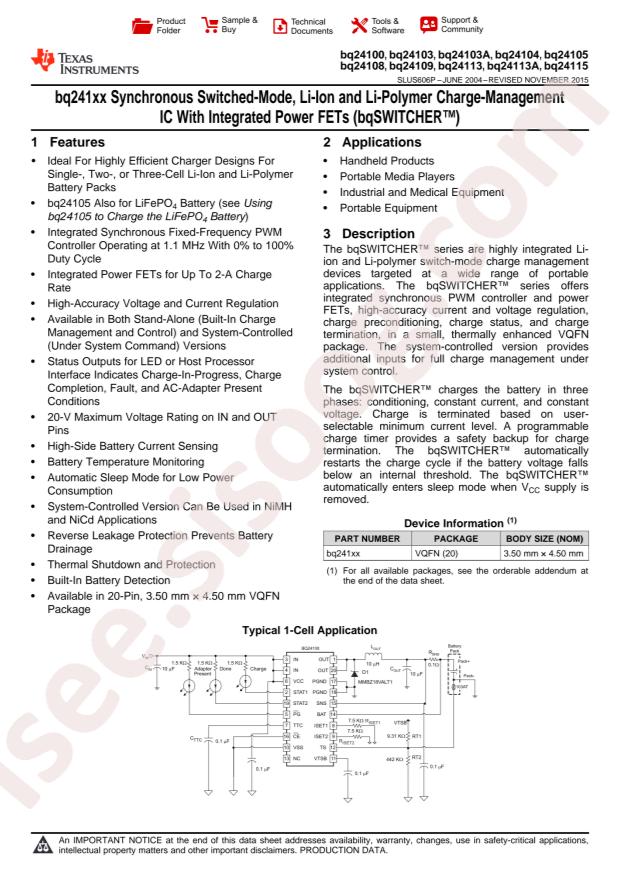

BQ2410x(A), 11x(A) Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Battery Management ICs
- Datasheet: Texas Instruments BQ24105RHLR
- Package: VQFN-20(3.6x4.6)
- Manufacturer: Texas Instruments
- Part Status: Active
- Mounting Type: Surface Mount
- Package / Case: 20-VFQFN Exposed Pad
- Battery Pack Voltage: 15.5V
- Battery Chemistry: Multi-Chemistry
- Packaging: Cut Tape (CT)
- Fault Protection: Over Temperature, Over Voltage
- Charge Current - Max: 2A
- Voltage - Supply (Max): 16V
- Base Part Number: BQ24105
- Interface: -
- Current - Charging: Constant - Programmable
- Series: bqSWITCHER™
- Programmable Features: Current, Timer
- Number of Cells: 1 ~ 3
- Supplier Device Package: 20-VQFN (3.5x4.5)
- Operating Temperature: -40°C ~ 85°C (TA)
