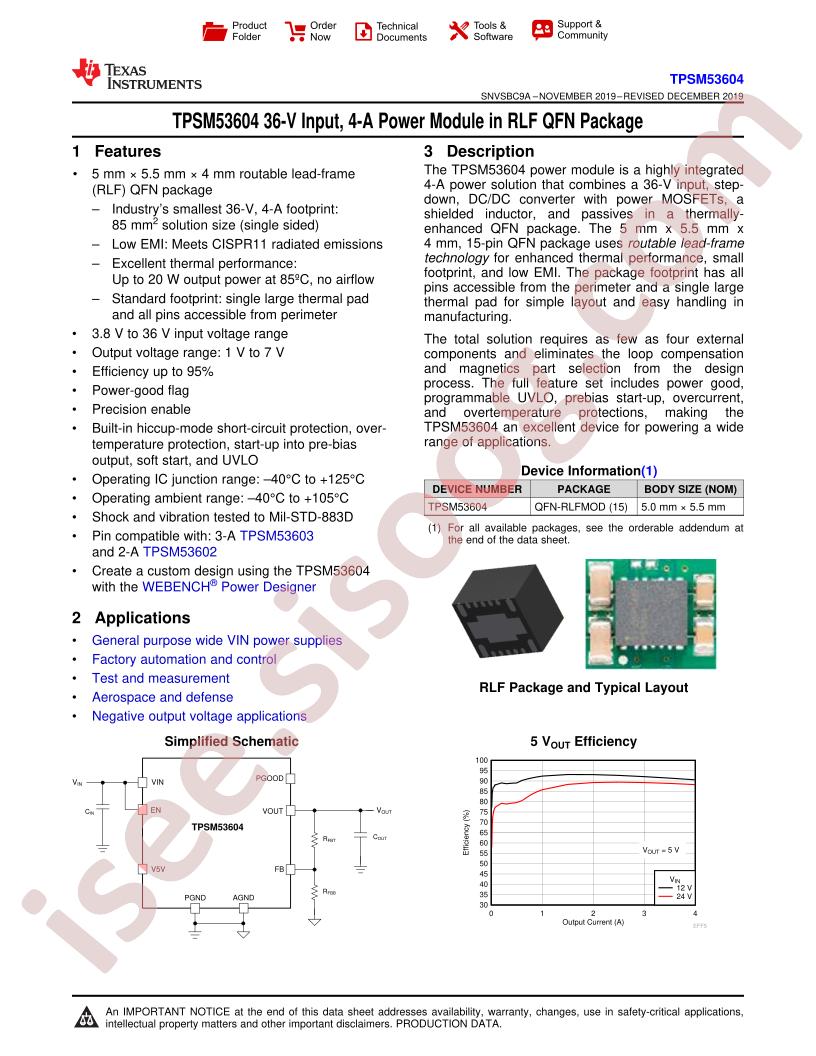

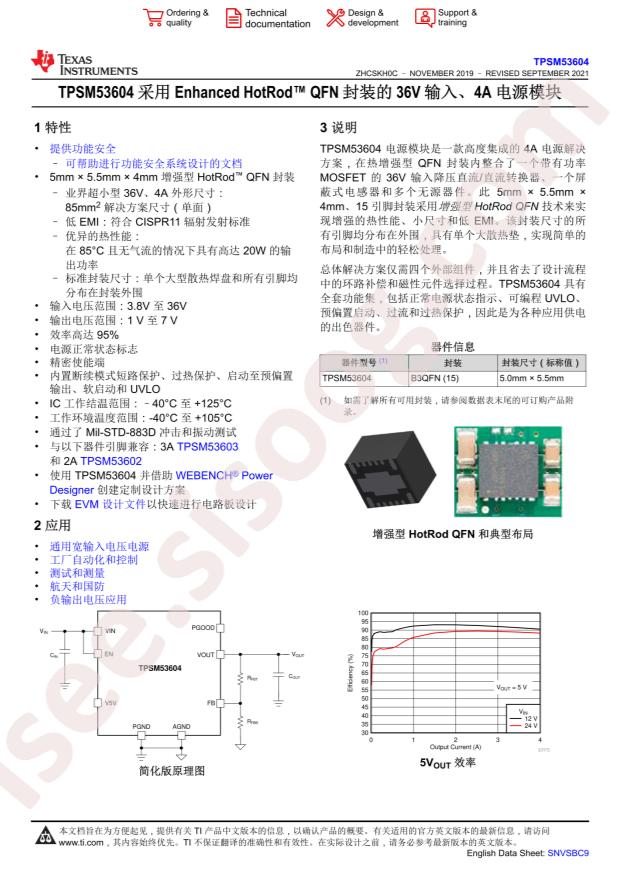

دیتاشیت TPSM53604RDAR
مشخصات دیتاشیت
| نام دیتاشیت |
TPSM53604
|
| حجم فایل |
1125.284
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
33
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/Power Modules
-
Datasheet:
Texas Instruments TPSM53604RDAR
-
Output Channel:
1
-
Output Voltage:
1V~7V
-
Input Voltage(DC):
3.8V~36V
-
Output Current (Max):
4A
-
Conversion Efficiency:
95%
-
Package:
B3QFN-15
-
Manufacturer:
Texas Instruments
-
Type:
Non-Isolated PoL Module
-
Control Features:
Enable, Active High
-
Mounting Type:
Surface Mount
-
Voltage - Output 3:
-
-
Supplier Device Package:
15-B3QFN (5x5.5)
-
Voltage - Output 1:
1 ~ 7V
-
Approval Agency:
-
-
Operating Temperature:
-40°C ~ 105°C
-
Applications:
ITE (Commercial)
-
Size / Dimension:
0.22" L x 0.20" W x 0.16" H (5.5mm x 5.0mm x 4.1mm)
-
Voltage - Output 2:
-
-
Series:
-
-
Efficiency:
95%
-
Voltage - Input (Min):
3.8V
-
Voltage - Output 4:
-
-
Base Part Number:
TPSM53
-
Part Status:
Active
-
Package / Case:
14-PowerBQFN Module
-
Current - Output (Max):
4A
-
Features:
Adjustable Output
-
Number of Outputs:
1
-
Voltage - Input (Max):
36V
-
detail:
Non-Isolated PoL Module DC DC Converter 1 Output 1 ~ 7V 4A 3.8V - 36V Input
