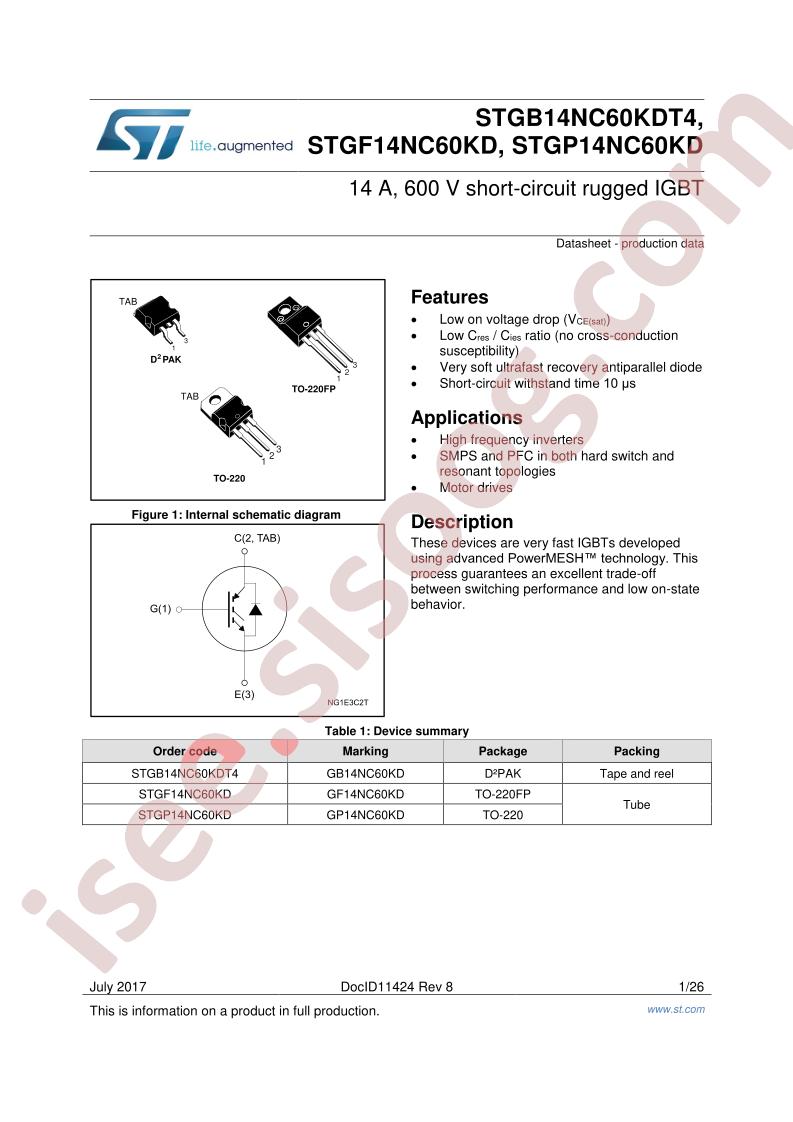

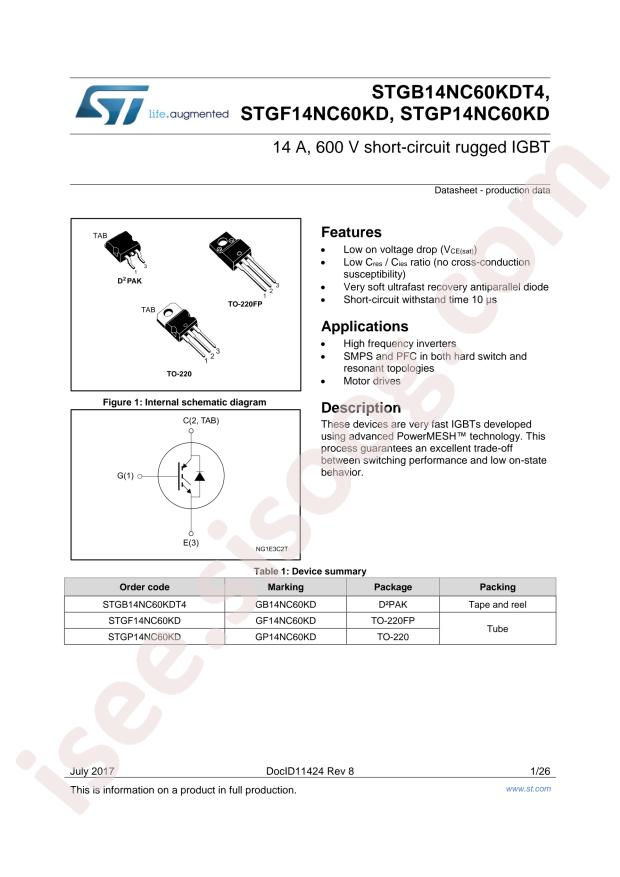

دیتاشیت STGP14NC60KD

STGx14NC60KD

مشخصات دیتاشیت

نام دیتاشیت STGx14NC60KD
حجم فایل 1496.759 کیلوبایت
نوع فایل pdf
تعداد صفحات 26

دانلود دیتاشیت STGx14NC60KD

STGx14NC60KD Datasheet

مشخصات

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/IGBTs
  • Datasheet: STMicroelectronics STGP14NC60KD
  • Package: TO-220
  • Manufacturer: STMicroelectronics
  • Series: PowerMESH™
  • Packaging: Tube
  • Part Status: Active
  • IGBT Type: -
  • Voltage - Collector Emitter Breakdown (Max): 600V
  • Current - Collector (Ic) (Max): 25A
  • Current - Collector Pulsed (Icm): 50A
  • Vce(on) (Max) @ Vge, Ic: 2.5V @ 15V, 7A
  • Power - Max: 80W
  • Switching Energy: 82µJ (on), 155µJ (off)
  • Input Type: Standard
  • Gate Charge: 34.4nC
  • Td (on/off) @ 25°C: 22.5ns/116ns
  • Test Condition: 390V, 7A, 10Ohm, 15V
  • Reverse Recovery Time (trr): 37ns
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Through Hole
  • Package / Case: TO-220-3
  • Supplier Device Package: TO-220AB
  • Base Part Number: STGP14
  • detail: IGBT 600V 25A 80W Through Hole TO-220AB
