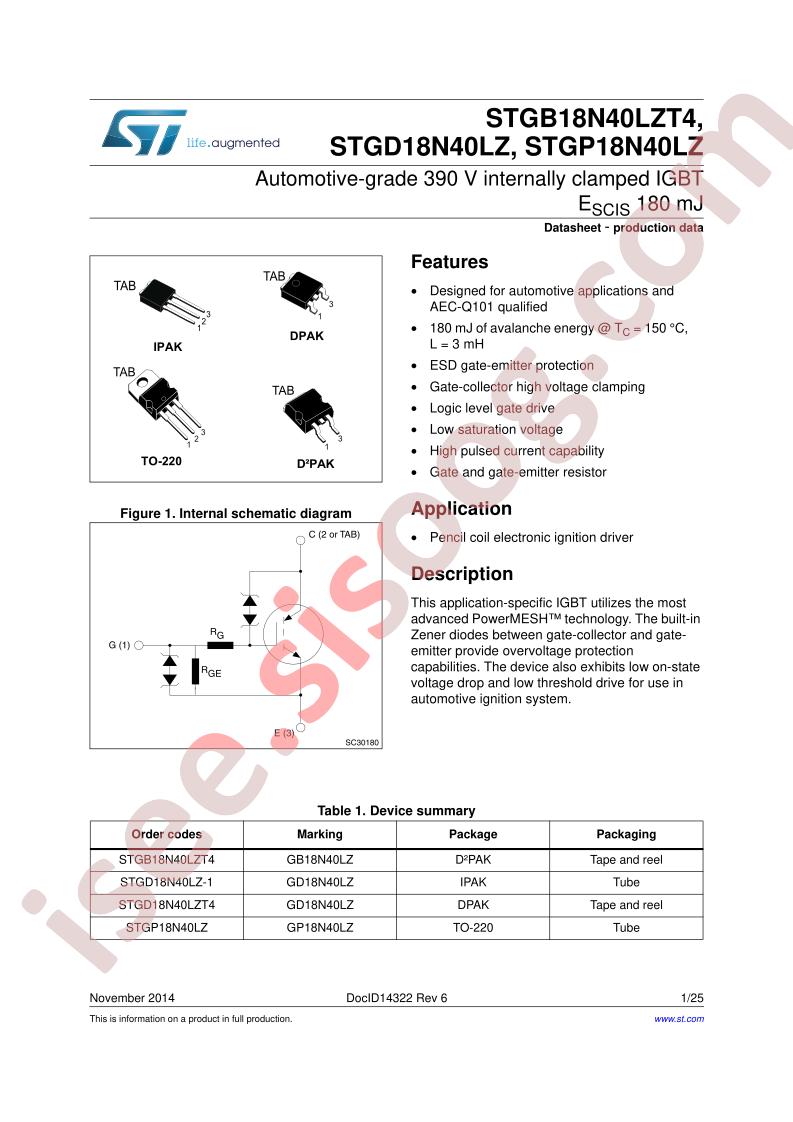

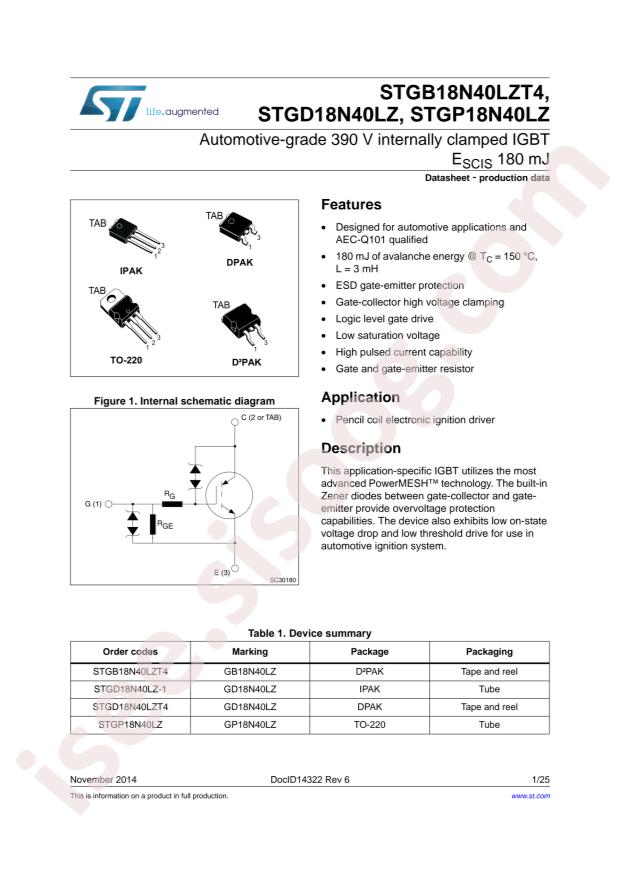

دیتاشیت STGD18N40LZT4
مشخصات دیتاشیت
| نام دیتاشیت |
STGx18N40LZ
|
| حجم فایل |
909.306
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
25
|
مشخصات
-
RoHS:
true
-
Type:
-
-
Category:
Triode/MOS Tube/Transistor/IGBTs
-
Datasheet:
STMicroelectronics STGD18N40LZT4
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Collector Current (Ic):
25A
-
Power Dissipation (Pd):
125W
-
Turn?on Delay Time (Td(on)):
650ns
-
Input Capacitance (Cies@Vce):
-
-
Turn?on Switching Loss (Eon):
-
-
Total Gate Charge (Qg@Ic,Vge):
29nC
-
Turn?off Delay Time (Td(off)):
13.5us
-
Pulsed Collector Current (Icm):
40A
-
Collector-Emitter Breakdown Voltage (Vces):
420V
-
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
1.7V@4.5V,10A
-
Package:
TO-252
-
Manufacturer:
STMicroelectronics
-
Series:
Automotive, AEC-Q101, PowerMESH™
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
IGBT Type:
-
-
Voltage - Collector Emitter Breakdown (Max):
420V
-
Current - Collector (Ic) (Max):
25A
-
Current - Collector Pulsed (Icm):
40A
-
Vce(on) (Max) @ Vge, Ic:
1.7V @ 4.5V, 10A
-
Power - Max:
125W
-
Switching Energy:
-
-
Input Type:
Logic
-
Gate Charge:
29nC
-
Td (on/off) @ 25°C:
650ns/13.5µs
-
Test Condition:
300V, 10A, 5V
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-252-3, DPak (2 Leads + Tab), SC-63
-
Supplier Device Package:
DPAK
-
Base Part Number:
STGD18
-
detail:
IGBT 420V 25A 125W Surface Mount DPAK
