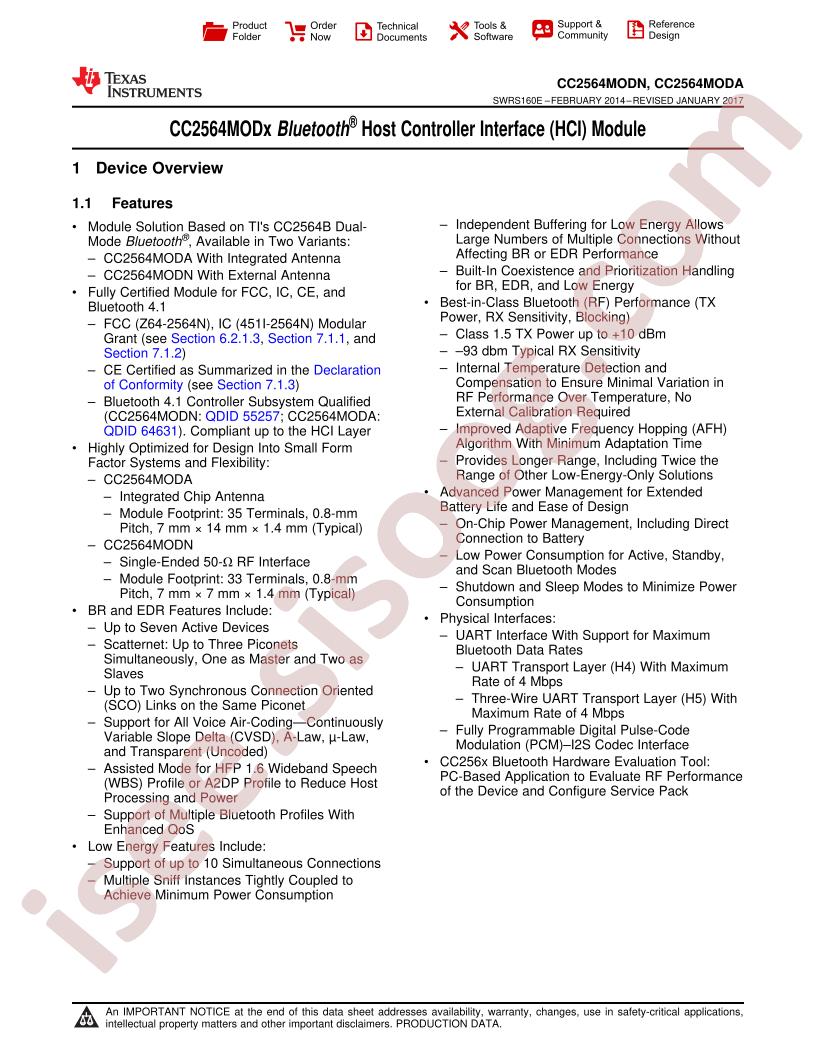

- CC2564MOD(A,N) Datasheet
CC2564MODACMOG Datasheet
Datasheet specifications
| Datasheet's name | CC2564MOD(A,N) Datasheet |
|---|---|
| File size | 17319.452 KB |
| File type | |
| Number of pages | 66 |
Download Datasheet CC2564MOD(A,N) Datasheet |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Mounting Type: Surface Mount
- Current - Transmitting: 40.5mA ~ 41.2mA
- Data Rate: 3.9Mbps
- Power - Output: 10dBm
- Sensitivity: -93dBm
- Base Part Number: CC2564
- Voltage - Supply: 2.2V ~ 4.8V
- Memory Size: -
- Operating Temperature: -30°C ~ 85°C
- Part Status: Active
- Current - Receiving: 40.5mA ~ 41.2mA
- Modulation: DPSK, DQPSK, GFSK
- Package / Case: 33-SMD Module
- Serial Interfaces: UART
- Frequency: 2.4GHz
- RF Family/Standard: Bluetooth
- Utilized IC / Part: CC2564
- Series: -
- Manufacturer: Texas Instruments
- Protocol: Bluetooth v4.0 Dual Mode
- Packaging: Tray
- Antenna Type: Integrated, Chip
- detail: Bluetooth Bluetooth v4.0 Dual Mode Transceiver Module 2.4GHz Integrated, Chip Surface Mount
