دیتاشیت UC3625DW
مشخصات دیتاشیت
| نام دیتاشیت | UC1625, UC2625, UC3625 |
|---|---|
| حجم فایل | 922.604 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 24 |
دانلود دیتاشیت UC1625, UC2625, UC3625 |
UC1625, UC2625, UC3625 Datasheet |
|---|
مشخصات
- RoHS: true
- Type: 无刷直流BLDC
- Category: Power Supply Chip/Motor Driver ICs
- Datasheet: Texas Instruments UC3625DW
- Interface: Parallel
- Supply Voltage: 10V~18V
- Operating Temperature: 0°C~+70°C@(Tj)

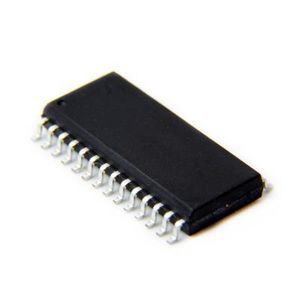

- Package: SOP-28-300mil
- Manufacturer: Texas Instruments
- Package / Case: 28-SOIC (0.295", 7.50mm Width)
- Part Status: Active
- Base Part Number: UC362
- Current - Output: -
- Series: -
- Voltage - Supply: 10V ~ 18V
- Technology: Power MOSFET, Power Darlington
- Mounting Type: Surface Mount
- Voltage - Load: -
- Motor Type - AC, DC: Brushless DC (BLDC)
- Motor Type - Stepper: -
- Packaging: Tube
- Function: Controller - Commutation, Direction Management
- Output Configuration: Pre-Driver - Half Bridge (3)
- Supplier Device Package: 28-SOIC
- Step Resolution: -
- Applications: General Purpose
