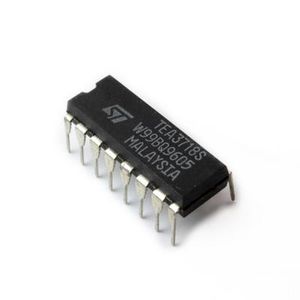

دیتاشیت E-TEA3718SDP
مشخصات دیتاشیت
| نام دیتاشیت | TEA3718 Datasheet |
|---|---|
| حجم فایل | 599.117 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 26 |

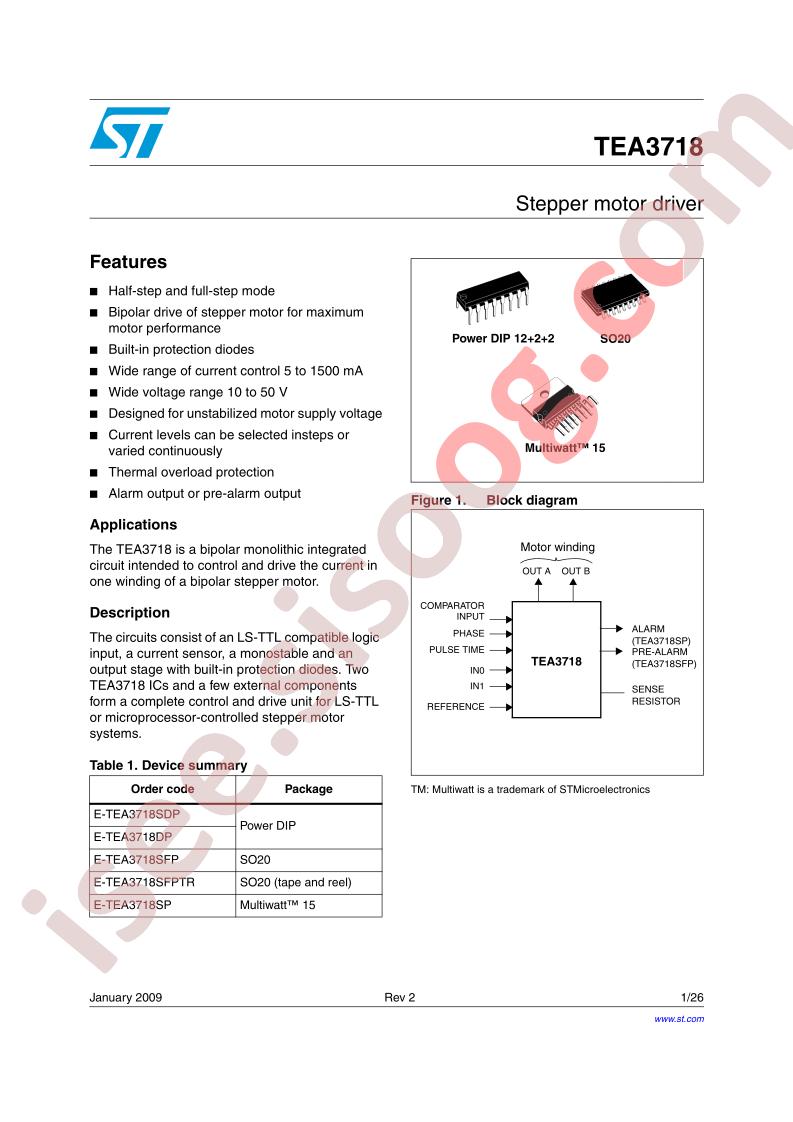

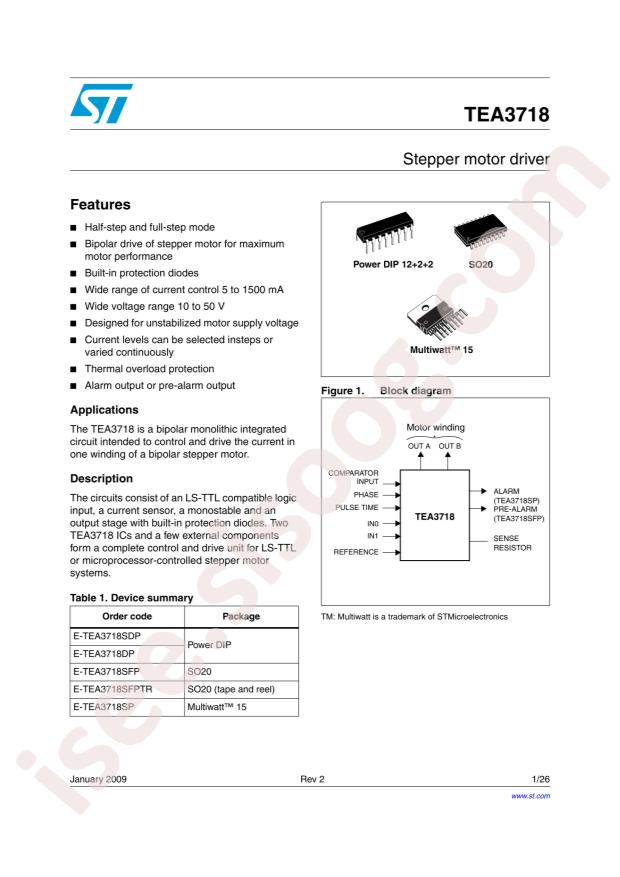

دانلود دیتاشیت TEA3718 Datasheet |
TEA3718 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Type: -
- Category: Power Supply Chip/Motor Driver ICs
- Datasheet: STMicroelectronics E-TEA3718SDP
- Interface: Parallel
- Output Current: 1.5A
- Supply Voltage: 4.75V~5.25V
- Operating Temperature: 0°C~+150°C@(Tj)
- Package: PowerDIP-16
- Manufacturer: STMicroelectronics
- Series: -
- Packaging: Tube
- Part Status: Active
- Motor Type - Stepper: Bipolar
- Motor Type - AC, DC: -
- Function: Driver - Fully Integrated, Control and Power Stage
- Output Configuration: Half Bridge (2)
- Technology: Bipolar
- Step Resolution: 1, 1/2
- Applications: General Purpose
- Current - Output: 1.5A
- Voltage - Supply: 4.75V ~ 5.25V
- Voltage - Load: 10V ~ 45V
- Mounting Type: Through Hole
- Package / Case: 16-DIP (0.300", 7.62mm)
- Supplier Device Package: 16-PowerDIP
- Base Part Number: TEA3718
- detail: Bipolar Motor Driver Bipolar Parallel 16-PowerDIP
