دیتاشیت LM117H
مشخصات دیتاشیت
| نام دیتاشیت | LM117/317-N Datasheet |
|---|---|
| حجم فایل | 6174.891 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 51 |

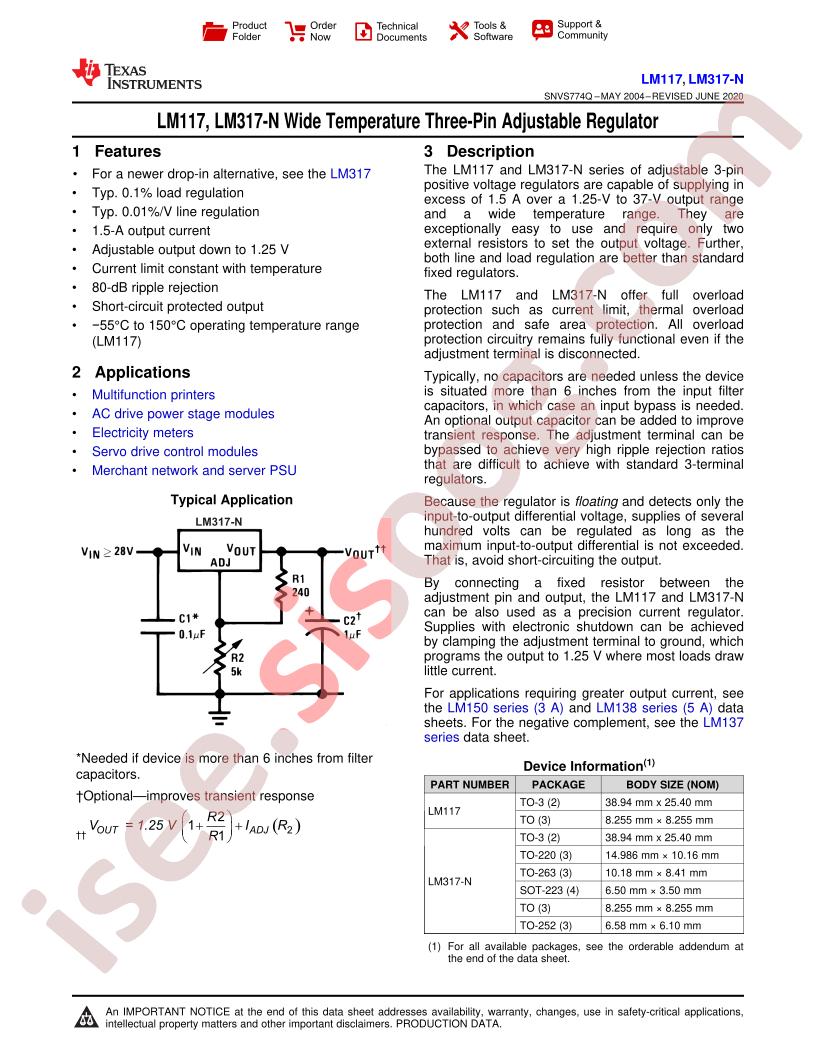

دانلود دیتاشیت LM117/317-N Datasheet |
LM117/317-N Datasheet Datasheet |
|---|
مشخصات
- Part Status: Active
- Current - Output: 1.5A
- Series: -
- Package / Case: TO-205AD, TO-39-3 Metal Can
- Voltage - Output (Min/Fixed): 1.25V
- Control Features: -
- Number of Regulators: 1
- Mounting Type: Through Hole
- Voltage - Output (Max): 37V
- Base Part Number: LM117
- Protection Features: Over Current, Over Temperature, Short Circuit
- PSRR: 80dB ~ 65dB (120Hz)
- Voltage Dropout (Max): -
- Packaging: Tube
- Manufacturer: Texas Instruments
- Output Type: Adjustable
- Output Configuration: Positive
- Supplier Device Package: TO-39-3
- Operating Temperature: -55°C ~ 150°C (TJ)
- Voltage - Input (Max): 40V
