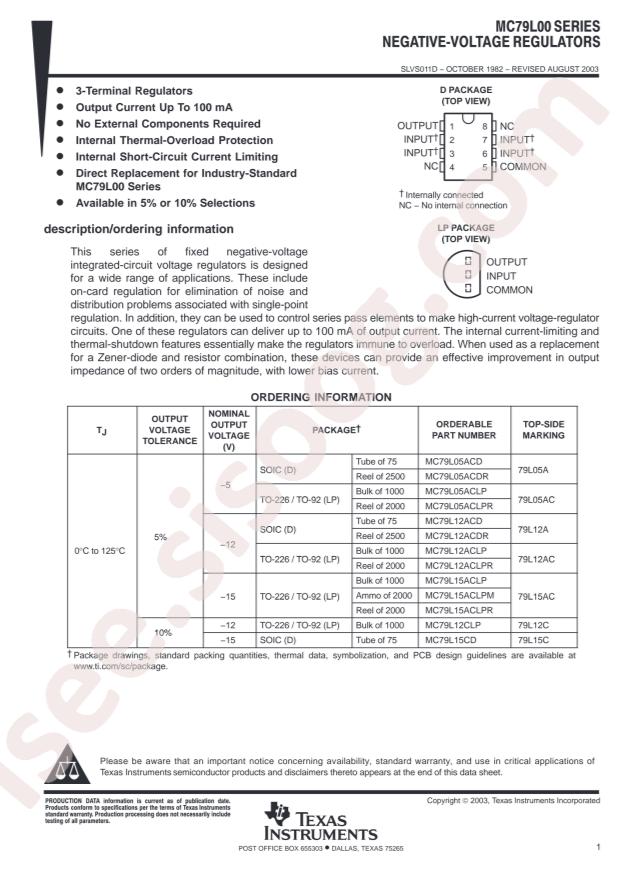

دیتاشیت MC79L05ACDR
مشخصات دیتاشیت
| نام دیتاشیت |
MC79L00 Series
|
| حجم فایل |
677.461
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
17
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
Texas Instruments MC79L05ACDR
-
Output Type:
Fixed
-
Output Current:
100mA
-
Output Voltage:
5V
-
Dropout Voltage:
1.7V@(40mA)
-
Output Polarity:
Negative
-
Number of Outputs:
1
-
Maximum Input Voltage:
20V
-
Operating Temperature:
0°C~+125°C
-
Power Supply Rejection Ratio (PSRR):
49dB@(120Hz)
-
Package:
SOP-8
-
Manufacturer:
Texas Instruments
-
Part Status:
Active
-
Current - Output:
100mA
-
Series:
-
-
Package / Case:
8-SOIC (0.154", 3.90mm Width)
-
Voltage - Output (Min/Fixed):
-5V
-
Control Features:
-
-
Number of Regulators:
1
-
Mounting Type:
Surface Mount
-
Voltage - Output (Max):
-
-
Base Part Number:
MC79L05
-
Protection Features:
Over Temperature, Short Circuit
-
PSRR:
49dB (120Hz)
-
Voltage Dropout (Max):
1.7V @ 40mA
-
Packaging:
Cut Tape (CT)
-
Output Configuration:
Negative
-
Supplier Device Package:
8-SOIC
-
Voltage - Input (Max):
-20V
