دیتاشیت LM2903PWR
مشخصات دیتاشیت
| نام دیتاشیت | LM193,293(A),LM393(A),2903(V) |
|---|---|
| حجم فایل | 2085.732 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 45 |
دانلود دیتاشیت LM193,293(A),LM393(A),2903(V) |

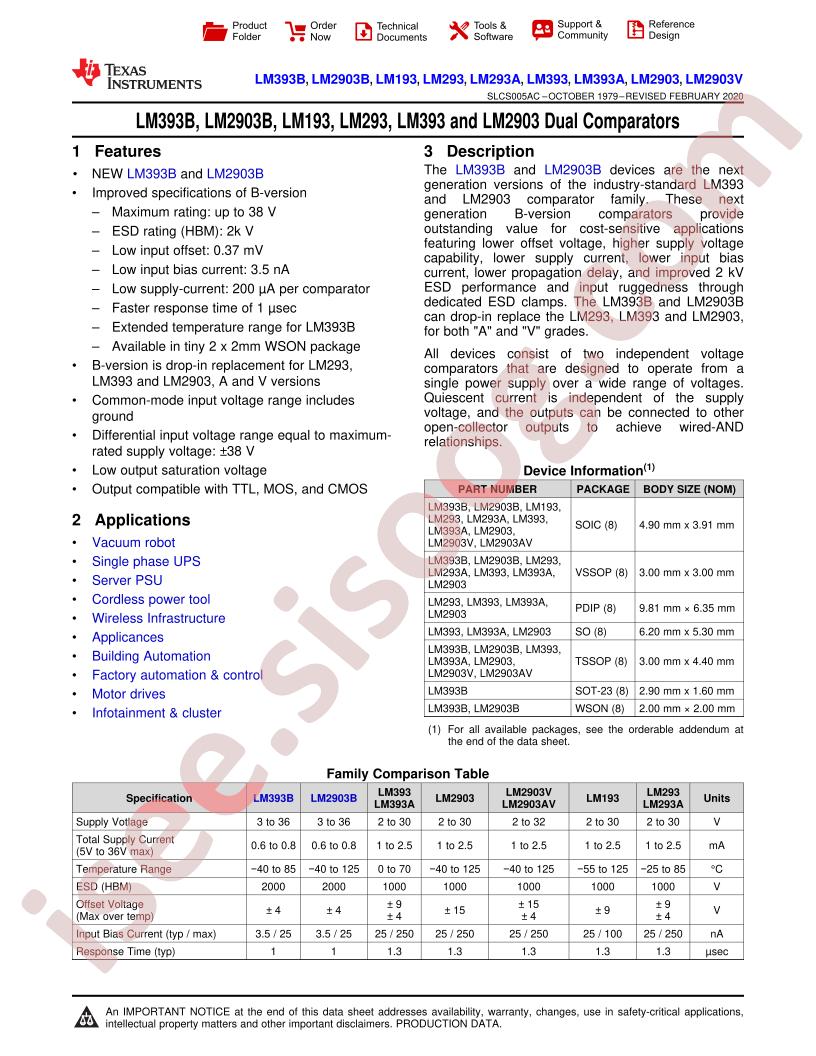

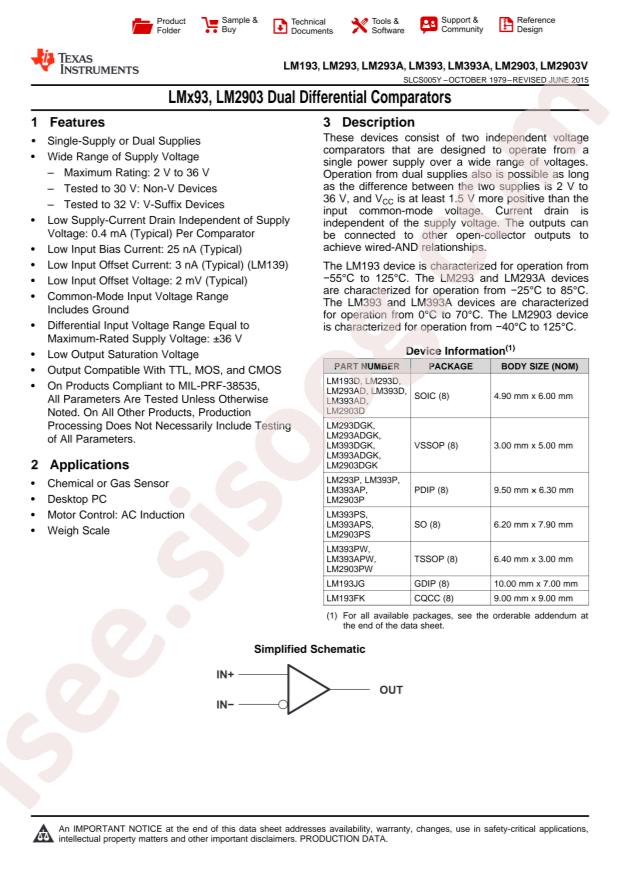

LM193,293(A),LM393(A),2903(V) Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Operational Amplifier/Comparator/Comparators
- Datasheet: Texas Instruments LM2903PWR
- Output Type: 开集;轨到轨
- Supply Current: 2.5mA
- Supply Voltage: 2V~36V;1V~18V
- Number of Elements: 2
- Operating Temperature: -40°C~+125°C
- Input Bias Current (Ib): 0.25uA
- Input Offset Voltage (Vos): 7mV
- Input Hysteresis Voltage (Vhys): -
- Common Mode Rejection Ratio (CMRR): -
- Package: TSSOP-8
- Manufacturer: Texas Instruments
- Current - Output (Typ): 20mA
- Part Status: Active
- Mounting Type: Surface Mount
- Package / Case: 8-TSSOP (0.173", 4.40mm Width)
- Hysteresis: -
- Base Part Number: LM2903
- Voltage - Input Offset (Max): 7mV @ 30V
- Series: -
- Current - Quiescent (Max): 2.5mA
- Type: Differential
- Voltage - Supply, Single/Dual (±): 2V ~ 36V, ±1V ~ 18V
- CMRR, PSRR (Typ): -
- Current - Input Bias (Max): 0.25µA @ 5V
- Packaging: Cut Tape (CT)
- Propagation Delay (Max): -
- Supplier Device Package: 8-TSSOP
- detail: Comparator Differential CMOS, MOS, Open-Drain, TTL 8-TSSOP
