دیتاشیت TL431CDBZR
مشخصات دیتاشیت
| نام دیتاشیت | TL431x, TL432x Datasheet |
|---|---|
| حجم فایل | 2987.19 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 84 |

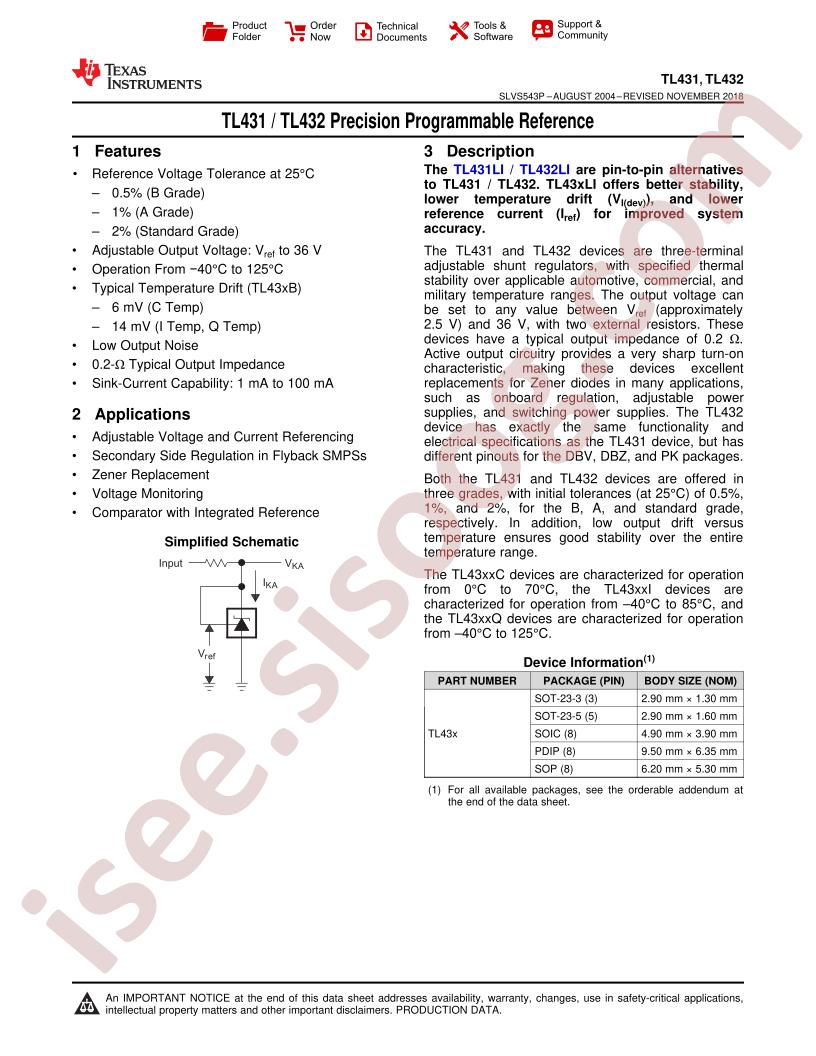

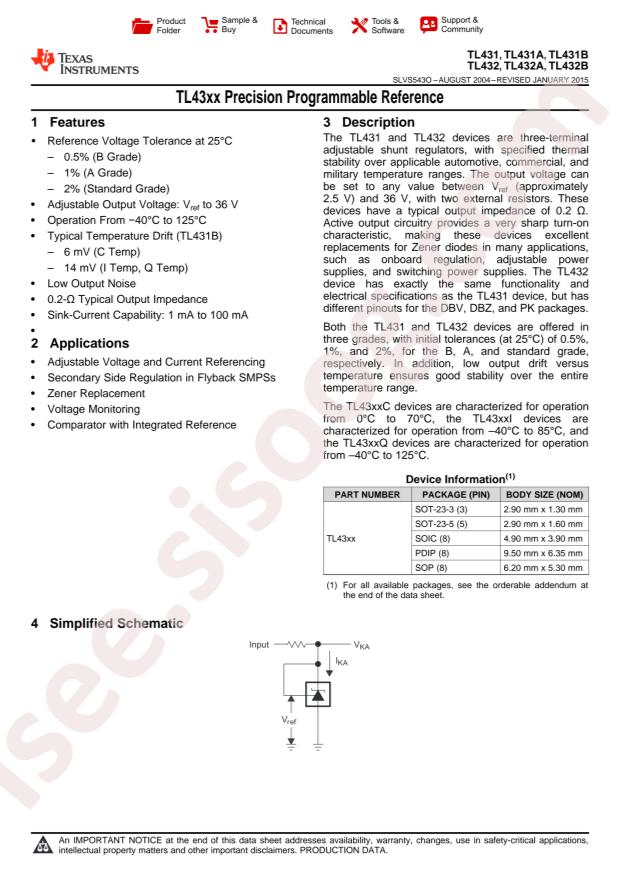

دانلود دیتاشیت TL431x, TL432x Datasheet |
TL431x, TL432x Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Voltage References
- Datasheet: Texas Instruments TL431CDBZR
- Tolerance: ±2.2%
- Output Type: Adjustable
- Output Current: 100mA
- Output Voltage: 2.495V~36V
- Reference Type: parallel connection
- Operating Temperature: 0°C~+70°C@(TA)
- Minimum Cathode Current for Regulation: 1mA
- Package: SOT-23
- Manufacturer: Texas Instruments
- Current - Cathode: 1mA
- Part Status: Active
- Current - Supply: -
- Current - Output: 100mA
- Series: -
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Voltage - Output (Min/Fixed): 2.495V
- Base Part Number: TL431
- Mounting Type: Surface Mount
- Noise - 10Hz to 10kHz: -
- Voltage - Output (Max): 36V
- Noise - 0.1Hz to 10Hz: -
- Voltage - Input: -
- Packaging: Cut Tape (CT)
- Supplier Device Package: SOT-23-3
- Temperature Coefficient: -
- detail: Shunt Voltage Reference IC 36V ±2.2% SOT-23-3
