دیتاشیت SN74HC05DR
مشخصات دیتاشیت
| نام دیتاشیت | SN54HC05, SN74HC05 |
|---|---|
| حجم فایل | 1301.994 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 26 |
دانلود دیتاشیت SN54HC05, SN74HC05 |

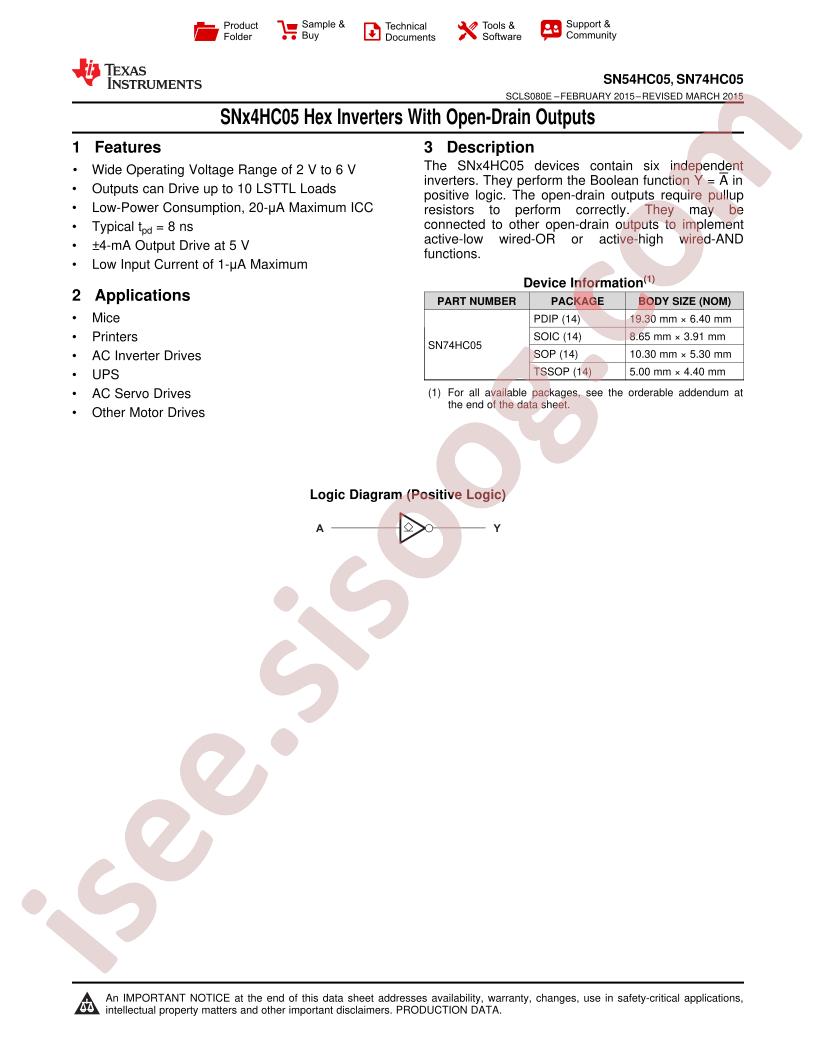

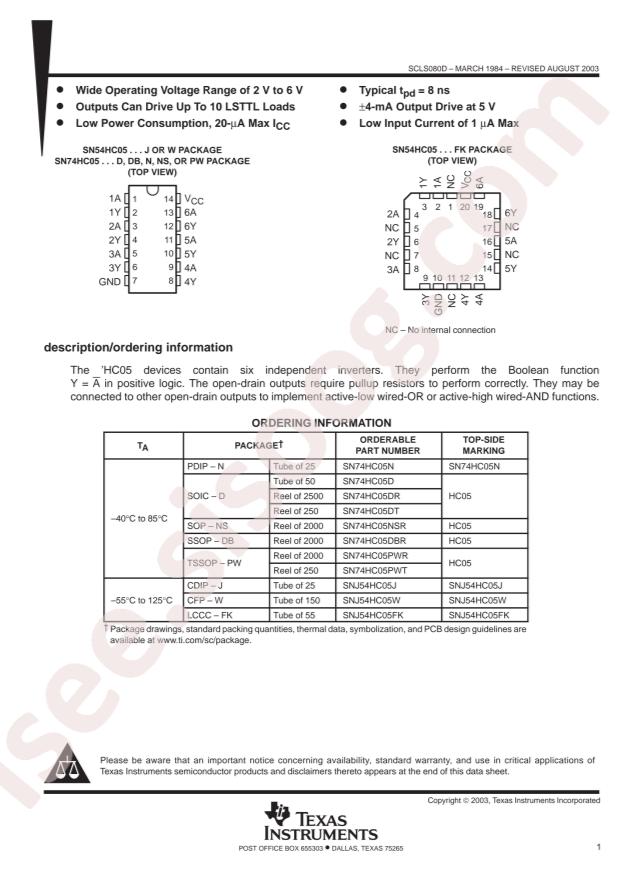

SN54HC05, SN74HC05 Datasheet |
|---|
مشخصات
- RoHS: true
- Series: 74HC
- Category: Logic ICs/Inverters
- Datasheet: Texas Instruments SN74HC05DR
- Input Type: -
- Sink Current: 5.2mA
- Source Current: -
- Number of Inputs: 1
- Number of Circuits: 6
- Supply Current (Max): 2uA
- Low level range (VIL): 0.5V~1.8V
- Max Propagation Delay: 20ns@6V,50pF
- Operating Temperature: -40°C~+85°C
- High level range (VIH): 1.5V~4.2V
- Supply Voltage(Single): 2V~6V
- Package: SOP-14
- Manufacturer: Texas Instruments
- Part Status: Active
- Max Propagation Delay @ V, Max CL: 20ns @ 6V, 50pF
- Package / Case: 14-SOIC (0.154", 3.90mm Width)
- Logic Level - Low: 0.5V ~ 1.8V
- Current - Output High, Low: -, 5.2mA
- Base Part Number: SN74HC0
- Current - Quiescent (Max): 2µA
- Mounting Type: Surface Mount
- Voltage - Supply: 2V ~ 6V
- Packaging: Cut Tape (CT)
- Logic Type: Inverter
- Supplier Device Package: 14-SOIC
- Features: Open Drain
- Logic Level - High: 1.5V ~ 4.2V
- detail: Inverter IC 6 Channel Open Drain 14-SOIC
