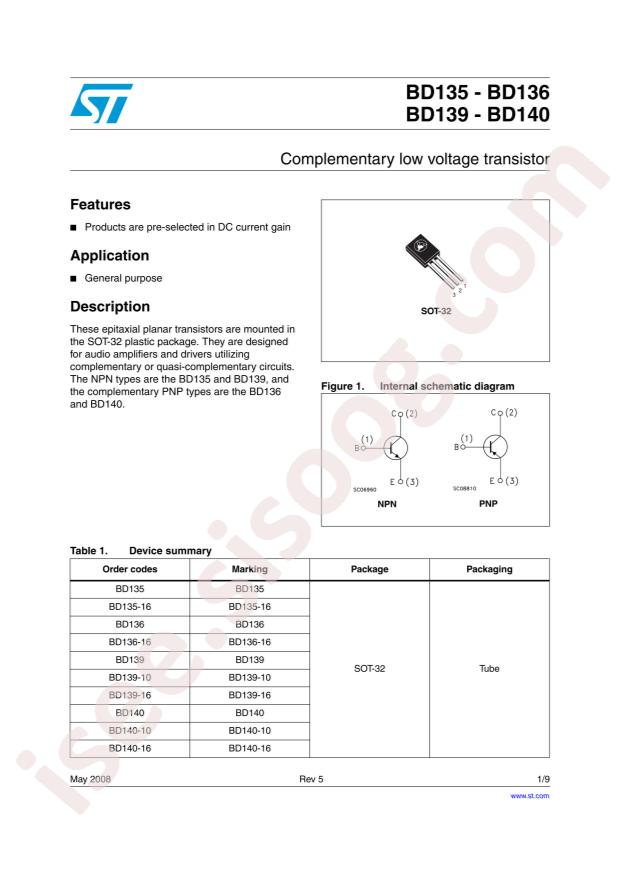

دیتاشیت BD136-16

BD135-136,139-140

مشخصات دیتاشیت

نام دیتاشیت BD135-136,139-140
حجم فایل 155.971 کیلوبایت
نوع فایل pdf
تعداد صفحات 9

دانلود دیتاشیت BD135-136,139-140

BD135-136,139-140 Datasheet

مشخصات

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
  • Datasheet: STMicroelectronics BD136-16
  • Transistor Type: PNP
  • Operating Temperature: +150°C@(Tj)
  • Collector Current (Ic): 1.5A
  • Power Dissipation (Pd): 12.5W
  • Transition Frequency (fT): -
  • DC Current Gain (hFE@Ic,Vce): 40@150mA,2V
  • Collector Cut-Off Current (Icbo): 100nA
  • Collector-Emitter Breakdown Voltage (Vceo): 45V
  • Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 500mV@500mA,50mA
  • Package: SOT-32
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Current - Collector (Ic) (Max): 1.5A
  • Voltage - Collector Emitter Breakdown (Max): 45V
  • Vce Saturation (Max) @ Ib, Ic: 500mV @ 50mA, 500mA
  • Current - Collector Cutoff (Max): 100nA (ICBO)
  • DC Current Gain (hFE) (Min) @ Ic, Vce: 40 @ 150mA, 2V
  • Power - Max: 1.25W
  • Frequency - Transition: -
  • Mounting Type: Through Hole
  • Package / Case: TO-225AA, TO-126-3
  • Supplier Device Package: SOT-32
  • Base Part Number: BD136
  • detail: Bipolar (BJT) Transistor PNP 45V 1.5A 1.25W Through Hole SOT-32
