دیتاشیت STGWA40H120DF2
مشخصات دیتاشیت
| نام دیتاشیت | STGW(A)40H120DF2 |
|---|---|
| حجم فایل | 839.252 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 17 |
دانلود دیتاشیت STGW(A)40H120DF2 |

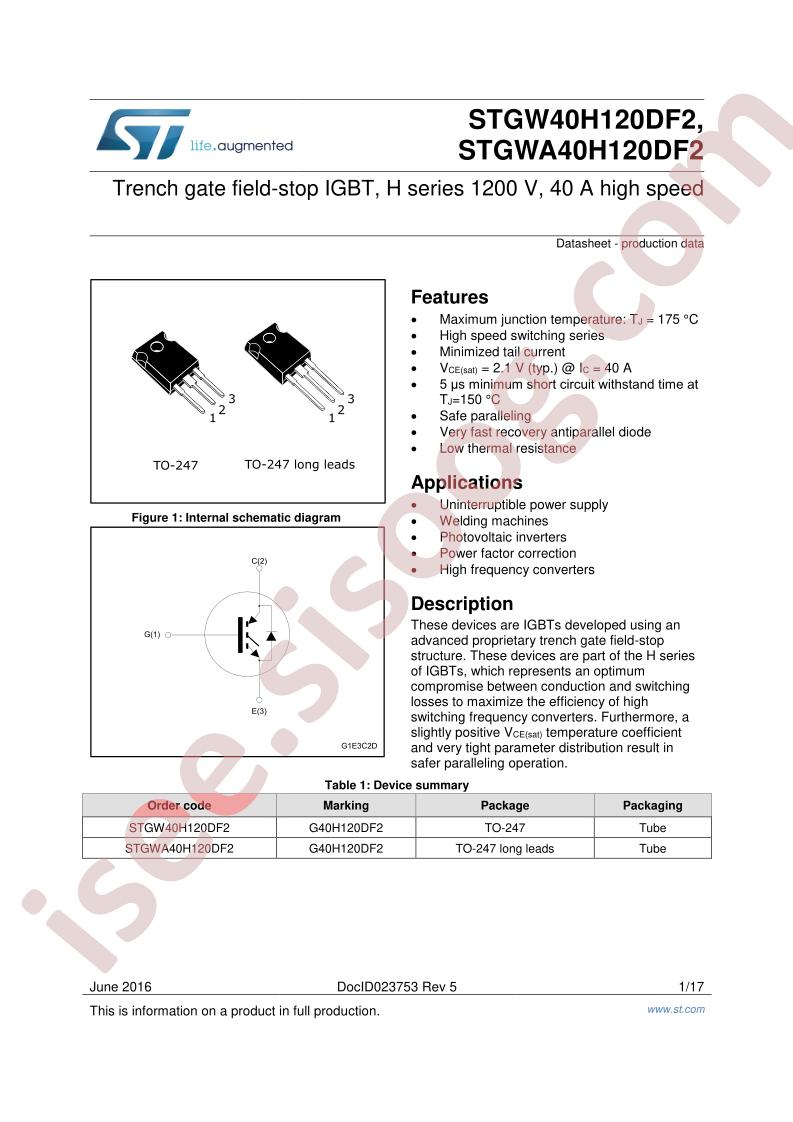

STGW(A)40H120DF2 Datasheet |
|---|
مشخصات
- Manufacturer: STMicroelectronics
- Series: -
- Packaging: Tube
- Part Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 1200V
- Current - Collector (Ic) (Max): 80A
- Current - Collector Pulsed (Icm): 160A
- Vce(on) (Max) @ Vge, Ic: 2.6V @ 15V, 40A
- Power - Max: 468W
- Switching Energy: 1mJ (on), 1.32mJ (off)
- Input Type: Standard
- Gate Charge: 158nC
- Td (on/off) @ 25°C: 18ns/152ns
- Test Condition: 600V, 40A, 10Ohm, 15V
- Reverse Recovery Time (trr): 488ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247-3
- Base Part Number: STGWA40
- detail: IGBT Trench Field Stop 1200V 80A 468W Through Hole TO-247-3
