دیتاشیت P6KE33A

P6KE

مشخصات دیتاشیت

نام دیتاشیت P6KE
حجم فایل 138.669 کیلوبایت
نوع فایل pdf
تعداد صفحات 9

دانلود دیتاشیت P6KE

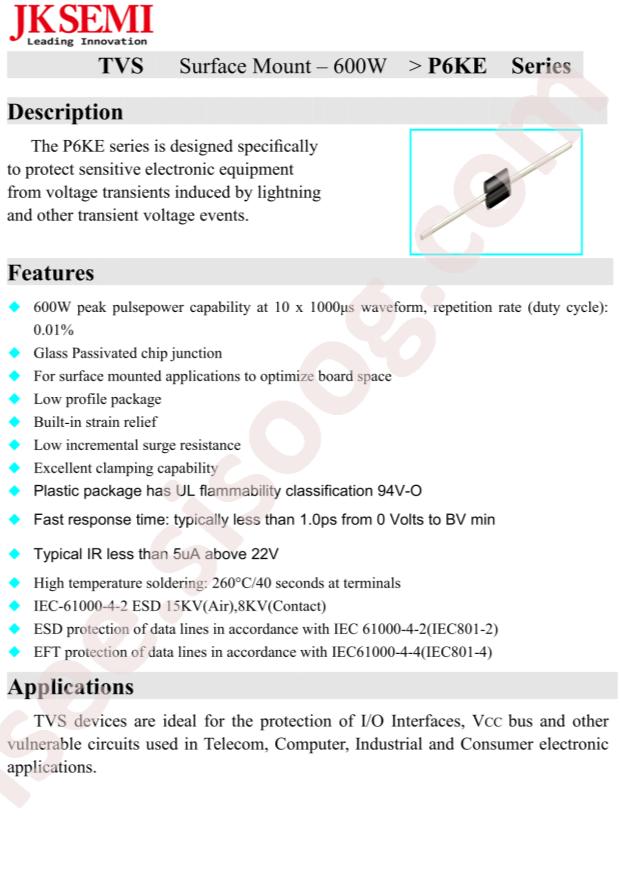

P6KE Datasheet

مشخصات

  • RoHS: true
  • Category: TVS/Fuse/Board Level Protection/TVS
  • Datasheet: Liown P6KE33A
  • Breakdown Voltage: 31.4V
  • Maximum Clamping Voltage: 45.7V
  • Reverse Leakage Current (Ir): 1uA
  • Reverse Stand-Off Voltage (Vrwm): 28.2V
  • Peak Pulse Current (Ipp)@10/1000us: 13.3A
  • Peak Pulse Power Dissipation (Ppp)@10/1000us: 600W
  • Package: DO-15
  • Manufacturer: Liown
  • Series: P6KE, TRANSIL™
  • Packaging: Cut Tape (CT)
  • Part Status: Obsolete
  • Type: Zener
  • Unidirectional Channels: 1
  • Voltage - Reverse Standoff (Typ): 28V
  • Voltage - Breakdown (Min): 31.4V
  • Voltage - Clamping (Max) @ Ipp: 59V
  • Current - Peak Pulse (10/1000µs): 68A (8/20µs)
  • Power - Peak Pulse: 600W
  • Power Line Protection: No
  • Applications: General Purpose
  • Capacitance @ Frequency: 1000pF @ 1MHz
  • Operating Temperature: -
  • Mounting Type: Through Hole
  • Package / Case: DO-204AC, DO-15, Axial
  • Supplier Device Package: DO-15
  • Base Part Number: P6KE
