دیتاشیت STP200NF03
مشخصات دیتاشیت
| نام دیتاشیت | ST(B,P)200NF03(-1) |
|---|---|
| حجم فایل | 453.385 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 18 |
دانلود دیتاشیت ST(B,P)200NF03(-1) |

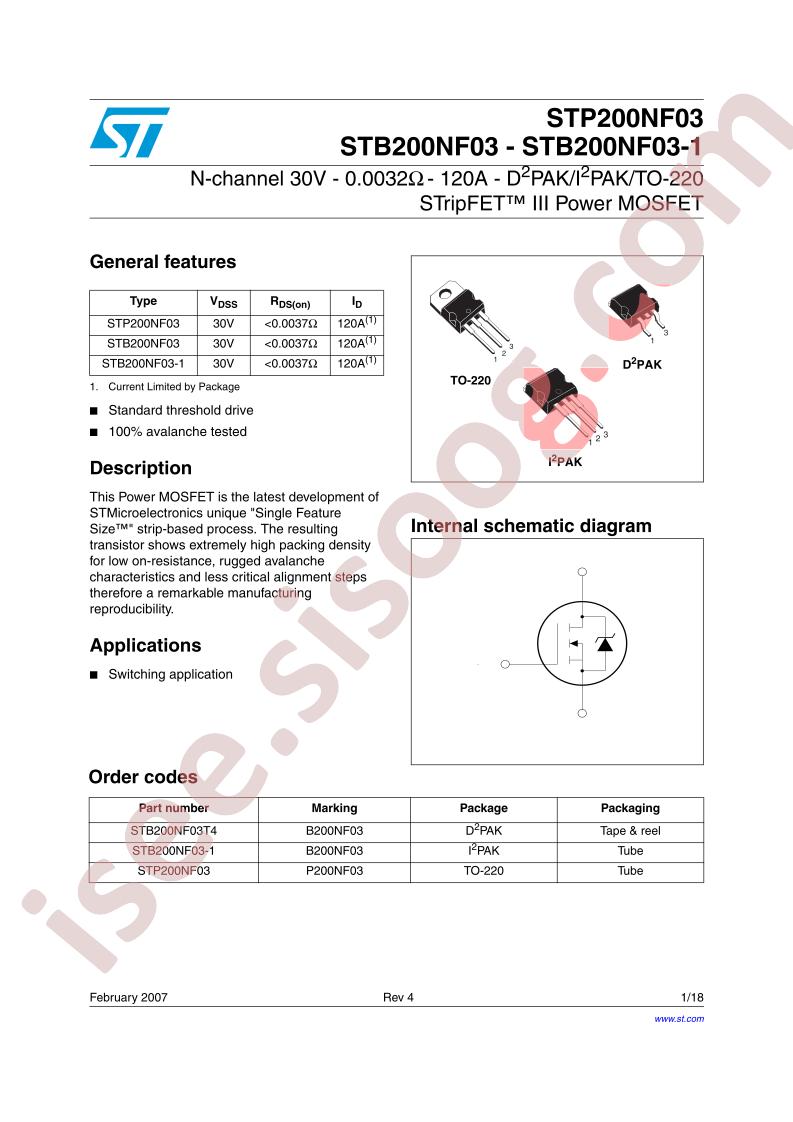

ST(B,P)200NF03(-1) Datasheet |
|---|
مشخصات
- Manufacturer: STMicroelectronics
- Series: STripFET™ III
- Packaging: Tube
- Part Status: Not For New Designs
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30V
- Current - Continuous Drain (Id) @ 25°C: 120A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 3.6mOhm @ 60A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 140nC @ 10V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 4950pF @ 25V
- FET Feature: -
- Power Dissipation (Max): 300W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220AB
- Package / Case: TO-220-3
- Base Part Number: STP200
- detail: N-Channel 30V 120A (Tc) 300W (Tc) Through Hole TO-220AB
