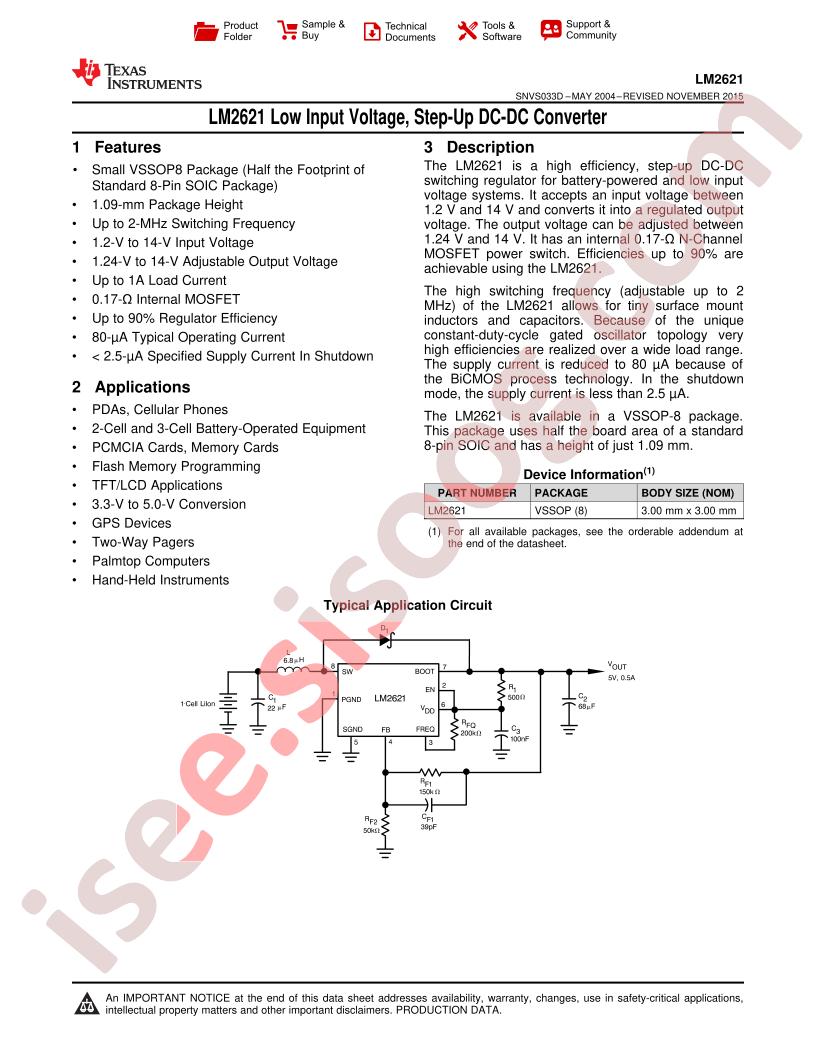

دیتاشیت LM2621MMX
مشخصات دیتاشیت
| نام دیتاشیت |
LM2621
|
| حجم فایل |
1165.154
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
21
|
مشخصات
-
Package / Case:
8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
-
Function:
Step-Up, Step-Up/Step-Down
-
Output Configuration:
Positive
-
Topology:
Boost, SEPIC
-
Base Part Number:
LM2621
-
Packaging:
Cut Tape (CT)
-
Operating Temperature:
-40°C ~ 85°C (TA)
-
Frequency - Switching:
300kHz ~ 2MHz
-
Supplier Device Package:
8-VSSOP
-
Part Status:
Obsolete
-
Current - Output:
2.85A (Switch)
-
Number of Outputs:
1
-
Series:
-
-
Manufacturer:
Texas Instruments
-
Voltage - Input (Max):
14V
-
Synchronous Rectifier:
No
-
Voltage - Output (Min/Fixed):
1.24V
-
Voltage - Input (Min):
1.2V
-
Mounting Type:
Surface Mount
-
Voltage - Output (Max):
14V
-
Output Type:
Adjustable
-
detail:
Boost, SEPIC Switching Regulator IC Positive Adjustable 1.24V 1 Output 2.85A (Switch) 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
