دیتاشیت TPS7A7200RGTT

TPS7A7200

مشخصات دیتاشیت

نام دیتاشیت TPS7A7200
حجم فایل 1663.028 کیلوبایت
نوع فایل pdf
تعداد صفحات 43

دانلود دیتاشیت TPS7A7200

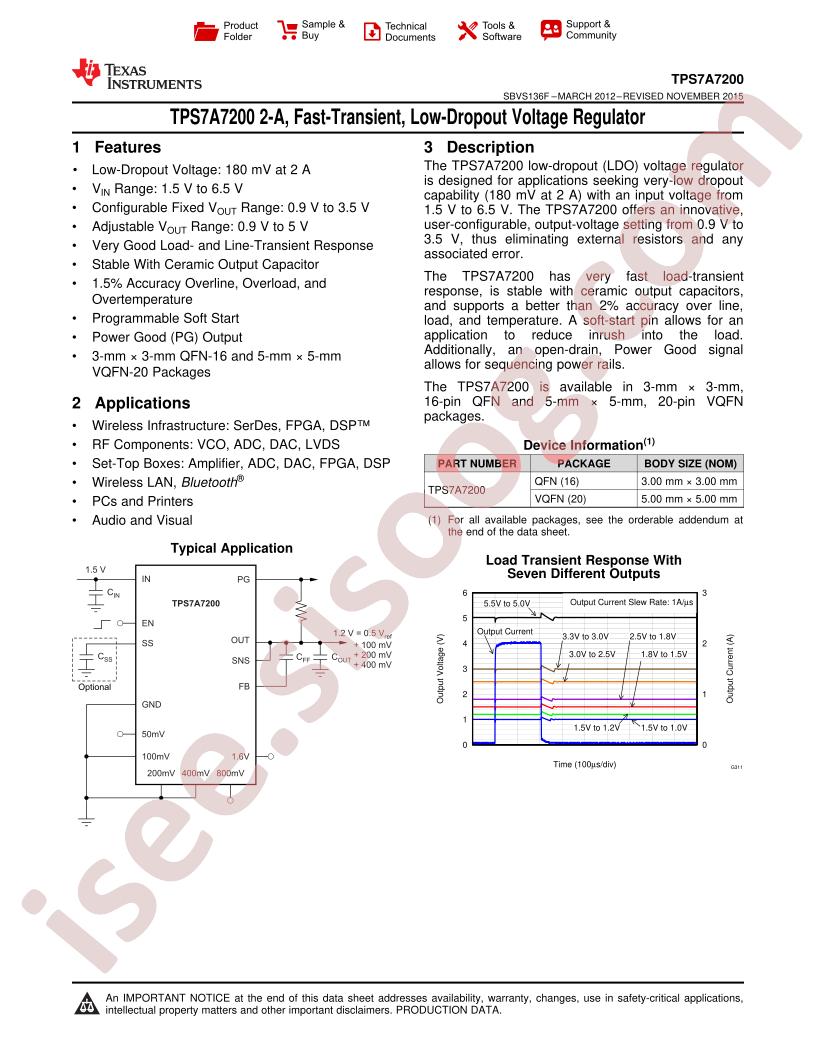

TPS7A7200 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: Texas Instruments TPS7A7200RGTT

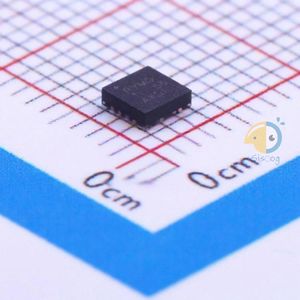

  • Package: QFN-16-EP(3x3)
  • Manufacturer: Texas Instruments
  • Protection Features: Over Current, Over Temperature, Under Voltage Lockout (UVLO)
  • Package / Case: 16-VFQFN Exposed Pad
  • Output Configuration: Positive
  • Current - Output: 2A
  • Base Part Number: TPS7A7
  • Operating Temperature: -40°C ~ 125°C
  • Control Features: Enable, Power Good, Soft Start
  • Supplier Device Package: 16-QFN (3x3)
  • Part Status: Active
  • Voltage Dropout (Max): 0.47V @ 2A
  • PSRR: -
  • Series: -
  • Voltage - Input (Max): 6.5V
  • Number of Regulators: 1
  • Voltage - Output (Min/Fixed): 0.9V
  • Current - Quiescent (Iq): 4mA
  • Packaging: Cut Tape (CT)
  • Mounting Type: Surface Mount
  • Voltage - Output (Max): 5V
  • Output Type: Adjustable (Fixed)
  • detail: Linear Voltage Regulator IC 1 Output 2A 16-QFN (3x3)
