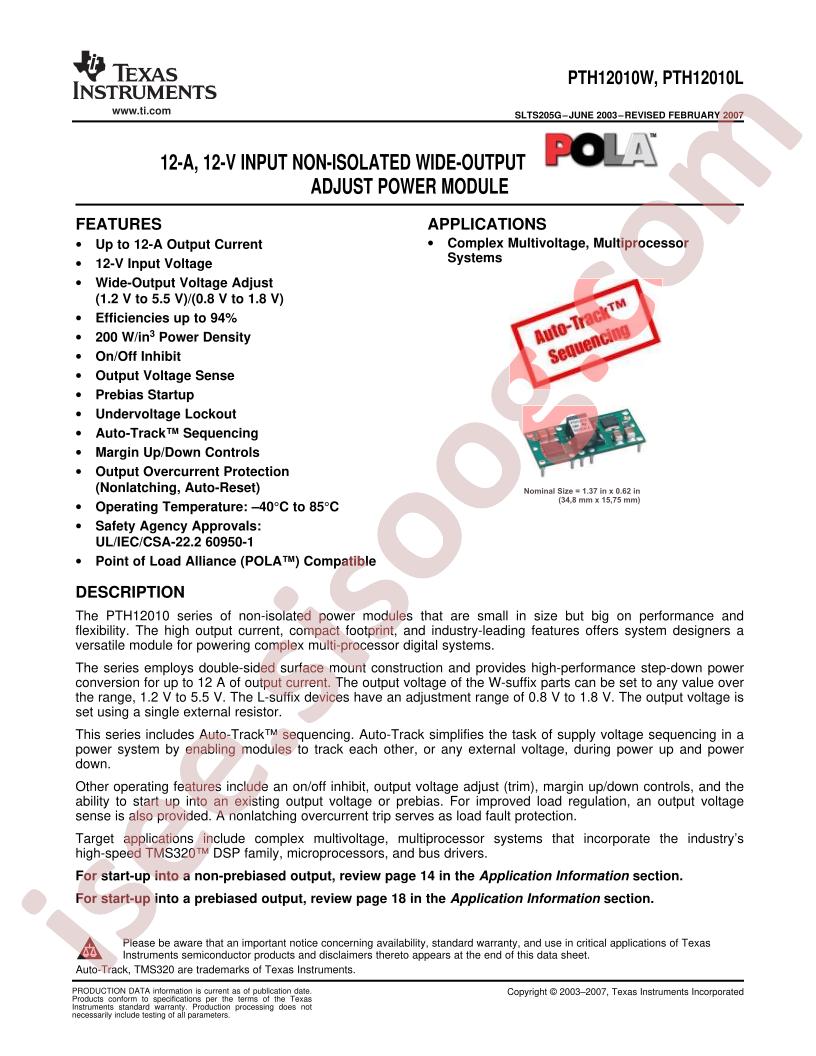

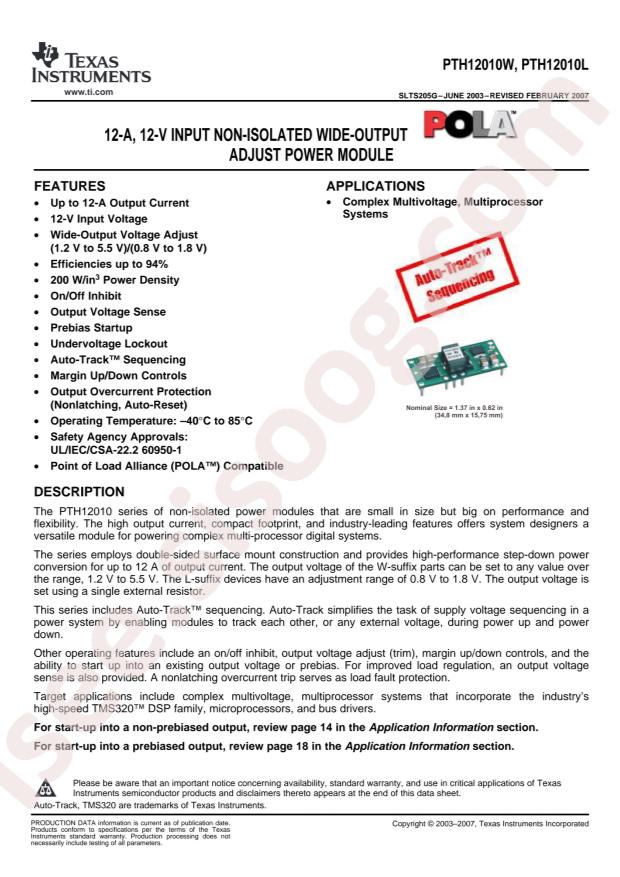

دیتاشیت PTH12010WAH
مشخصات دیتاشیت
| نام دیتاشیت |
PTH12010W,L
|
| حجم فایل |
951.41
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
27
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/Power Modules
-
Datasheet:
Texas Instruments PTH12010WAH
-
Package:
DIP-10
-
Manufacturer:
Texas Instruments
-
Voltage - Output 1:
1.2 ~ 5.5V
-
Efficiency:
94%
-
Size / Dimension:
1.37" L x 0.62" W x 0.36" H (34.8mm x 15.7mm x 9.1mm)
-
Base Part Number:
PTH12
-
Packaging:
Tray
-
Type:
Non-Isolated PoL Module
-
Package / Case:
10-DIP Module
-
Features:
-
-
Part Status:
Active
-
Voltage - Output 2:
-
-
Number of Outputs:
1
-
Series:
PTH12010
-
Voltage - Input (Max):
13.2V
-
Mounting Type:
Through Hole
-
Current - Output (Max):
12A
-
Applications:
ITE (Commercial)
-
Voltage - Input (Min):
10.8V
-
Operating Temperature:
-40°C ~ 85°C
-
Voltage - Output 3:
-
-
detail:
Non-Isolated PoL Module DC DC Converter 1 Output 1.2 ~ 5.5V 12A 10.8V - 13.2V Input
