دیتاشیت APT70GR120L

APT70GR120(B2,L)

مشخصات دیتاشیت

نام دیتاشیت APT70GR120(B2,L)
حجم فایل 1048.86 کیلوبایت
نوع فایل pdf
تعداد صفحات 6

دانلود دیتاشیت APT70GR120(B2,L)

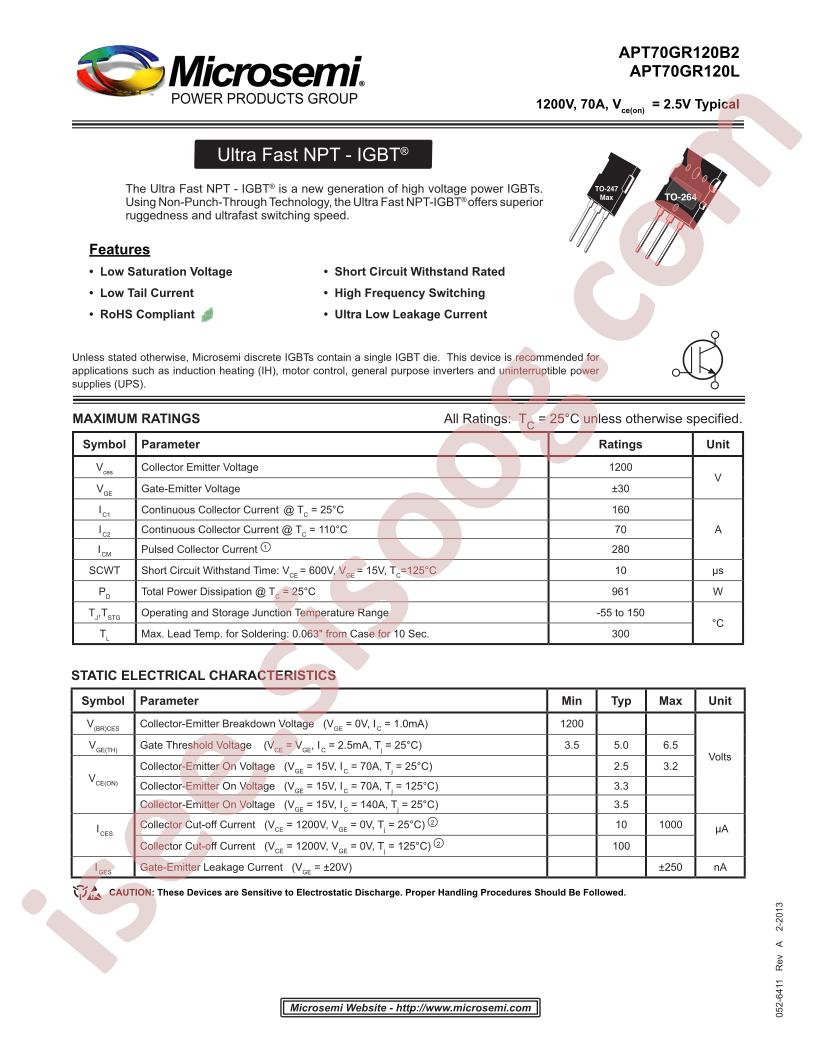

APT70GR120(B2,L) Datasheet

مشخصات

  • Manufacturer: Microchip Technology
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • IGBT Type: NPT
  • Voltage - Collector Emitter Breakdown (Max): 1200V
  • Current - Collector (Ic) (Max): 160A
  • Current - Collector Pulsed (Icm): 280A
  • Vce(on) (Max) @ Vge, Ic: 3.2V @ 15V, 70A
  • Power - Max: 961W
  • Switching Energy: 3.82mJ (on), 2.58mJ (off)
  • Input Type: Standard
  • Gate Charge: 544nC
  • Td (on/off) @ 25°C: 33ns/278ns
  • Test Condition: 600V, 70A, 4.3Ohm, 15V
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Through Hole
  • Package / Case: TO-264-3, TO-264AA
  • Supplier Device Package: TO-264
  • detail: IGBT NPT 1200V 160A 961W Through Hole TO-264
