دیتاشیت MURS120T3G
مشخصات دیتاشیت
| نام دیتاشیت | MURS120T3G, SURS8120T3G, NRVUS120VT3G Series |
|---|---|
| حجم فایل | 111.295 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 5 |

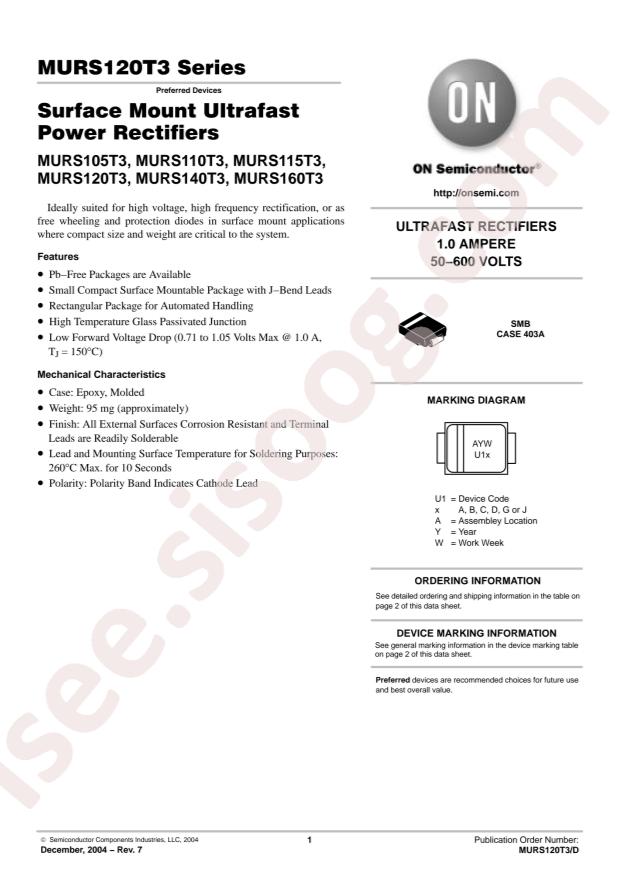

دانلود دیتاشیت MURS120T3G, SURS8120T3G, NRVUS120VT3G Series |
MURS120T3G, SURS8120T3G, NRVUS120VT3G Series Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Diodes/Diodes - Fast Recovery Rectifiers
- Datasheet: onsemi MURS120T3G
- Diode Configuration: -
- Reverse Voltage (Vr): 200V
- Operating Temperature: -65°C~+175°C@(Tj)
- Forward Voltage (Vf@If): 875mV@1A
- Reverse Leakage Current: 2uA@200V
- Reverse Recovery Time (trr): 35ns
- Average Rectified Current (Io): 2A
- Package: SMB(DO-214AA)
- Manufacturer: onsemi
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 200V
- Current - Average Rectified (Io): 2A
- Voltage - Forward (Vf) (Max) @ If: 875mV @ 1A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Current - Reverse Leakage @ Vr: 2µA @ 200V
- Capacitance @ Vr, F: -
- Mounting Type: Surface Mount
- Package / Case: DO-214AA, SMB
- Supplier Device Package: SMB
- Operating Temperature - Junction: -65°C ~ 175°C
- Base Part Number: MURS12
- detail: Diode Standard 200V 2A Surface Mount SMB
