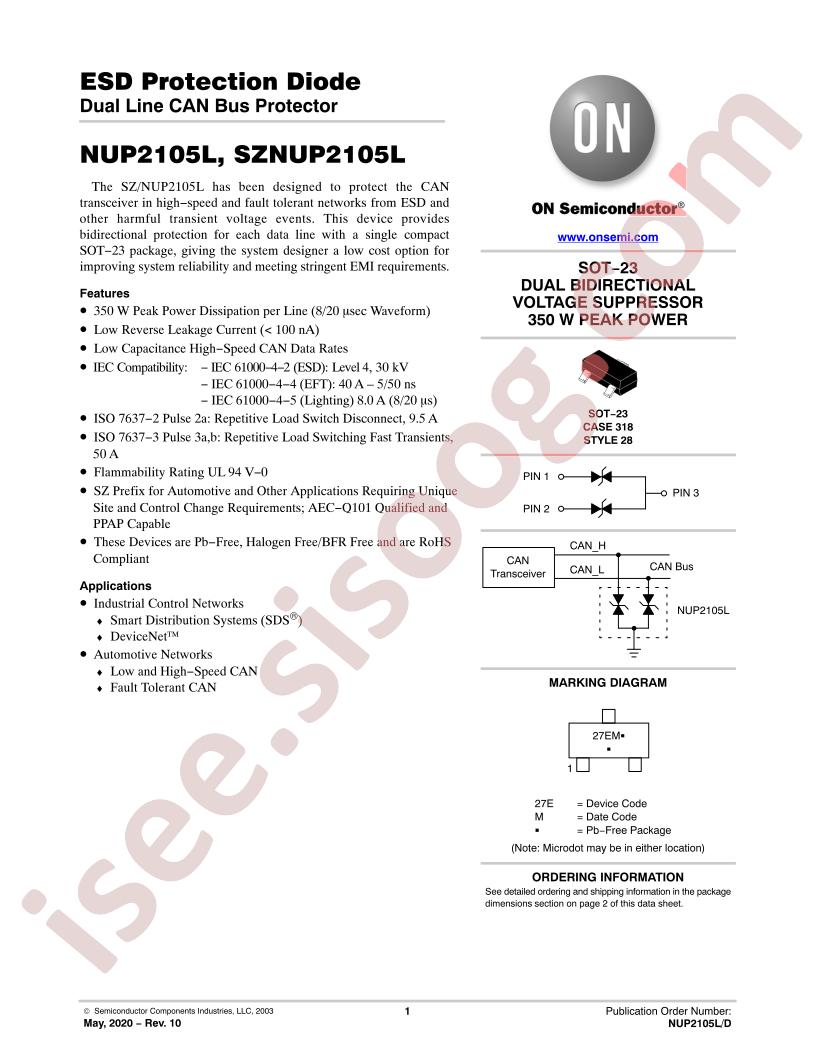

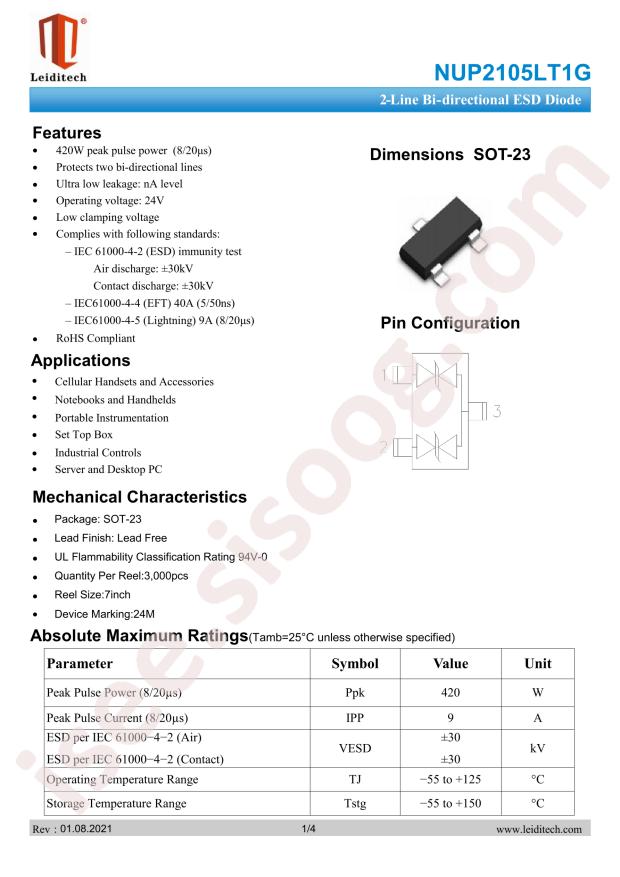

دیتاشیت NUP2105LT1G
مشخصات دیتاشیت
| نام دیتاشیت |
NUP2105L
|
| حجم فایل |
129.873
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
8
|
مشخصات
-
RoHS:
true
-
Category:
TVS/Fuse/Board Level Protection/ESD Protection Devices
-
Datasheet:
TECH PUBLIC NUP2105LT1G
-
Package:
SOT-23(TO-236)
-
Manufacturer:
TECH PUBLIC
-
Polarity:
Bi-Directional
-
Number of Lines:
2
-
Clamping Voltage@Ipp:
40V
-
Breakdown Voltage (VBR):
26V
-
Junction Capacitance(Cj)@1MHz:
10pF
-
Peak Pulse Current(Ipp)@8/20us:
4A
-
Reverse Stand-Off Voltage (Vrwm):
24V
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Peak Pulse Power(Ppp)@8/20us:
350W
-
Reverse Leakage Current:
0.1uA
-
Machine Model:
±30kV
-
Human Body Model:
±30kV
-
Contact Discharge Vesd:
±30kV
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Type:
Zener
-
Bidirectional Channels:
2
-
Voltage - Reverse Standoff (Typ):
24V (Min)
-
Voltage - Breakdown (Min):
26.2V
-
Voltage - Clamping (Max) @ Ipp:
44V
-
Current - Peak Pulse (10/1000µs):
8A (8/20µs)
-
Power - Peak Pulse:
350W
-
Power Line Protection:
No
-
Applications:
General Purpose
-
Capacitance @ Frequency:
30pF @ 1MHz
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-236-3, SC-59, SOT-23-3
-
Supplier Device Package:
SOT-23-3 (TO-236)
-
Base Part Number:
NUP2105
