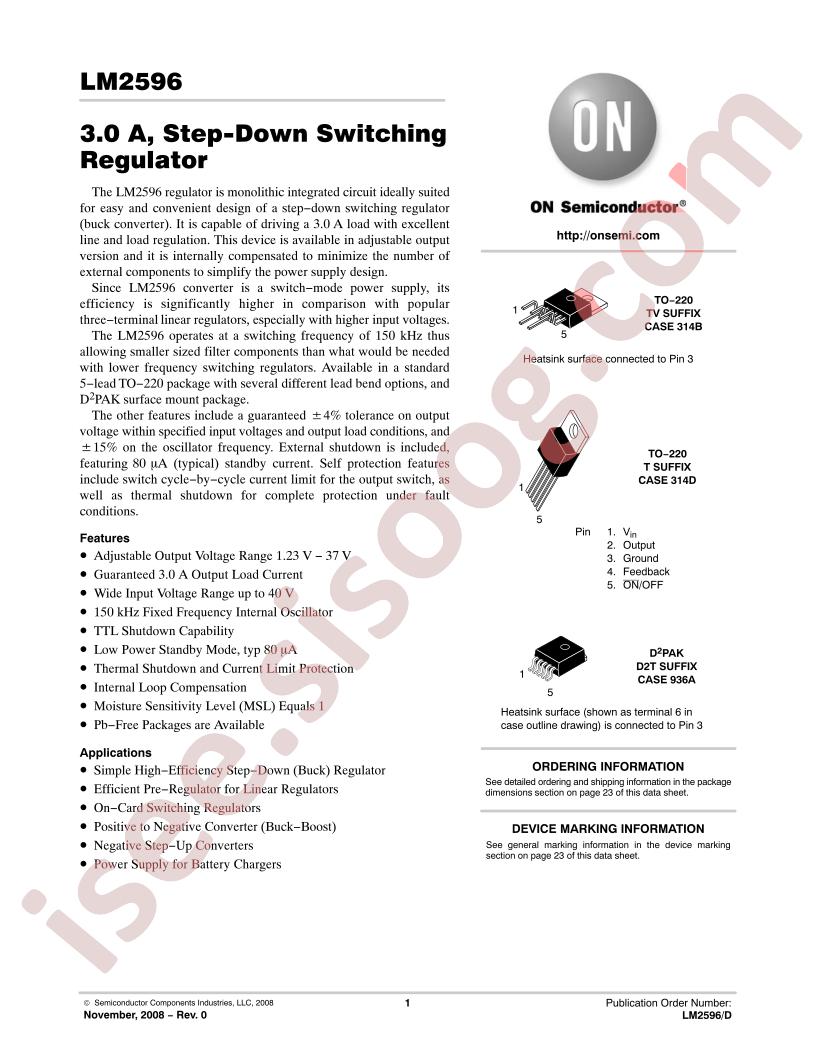

دیتاشیت LM2596DSADJR4G
مشخصات دیتاشیت
| نام دیتاشیت |
LM2596
|
| حجم فایل |
460.201
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
25
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
Buck-boost type
-
Topology:
Step-down;Boost;Step-down-Boost
-
Datasheet:
onsemi LM2596DSADJR4G
-
Output Type:
Adjustable
-
Input Voltage:
4.5V~40V
-
Output Voltage:
1.23V~37V
-
Number of Outputs:
1
-
Switching Frequency:
150kHz
-
Output Current (Max):
3A
-
Operating Temperature:
-40°C~+125°C@(TJ)
-
Synchronous Rectification:
NO
-
Package:
TO-263-5
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Configuration:
Positive or Negative
-
Voltage - Input (Min):
4.5V
-
Voltage - Input (Max):
40V
-
Voltage - Output (Min/Fixed):
1.23V
-
Voltage - Output (Max):
37V
-
Current - Output:
3A
-
Frequency - Switching:
150kHz
-
Synchronous Rectifier:
No
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
-
Supplier Device Package:
D2PAK-5
-
Base Part Number:
LM259
-
detail:
Buck, Boost, Buck-Boost Switching Regulator IC Positive or Negative Adjustable 1.23V 1 Output 3A TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
