دیتاشیت MC74HC1G08DFT1G
مشخصات دیتاشیت
| نام دیتاشیت |
MC74HC1G08
|
| حجم فایل |
170.7
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
9
|
مشخصات
-
RoHS:
true
-
Series:
74HC
-
Category:
Logic ICs/Gates
-
Datasheet:

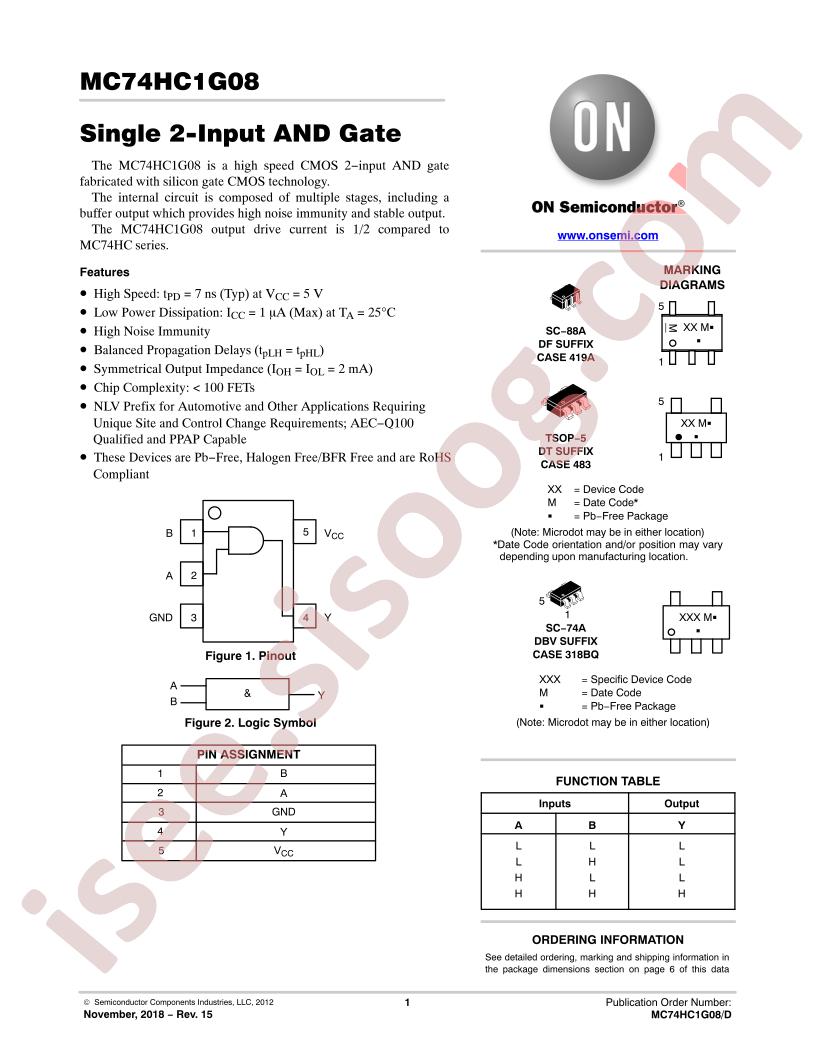

onsemi MC74HC1G08DFT1G
-
Sink Current:
2.6mA
-
Source Current:
2.6mA
-
Supply Voltage:
2V~6V
-
Logic Gate Type:
And
-
Number of Channels:
1
-
Low Level Range (VIL):
0.5V~1.8V
-
Operating Temperature:
-55°C~+125°C
-
High Level Range (VIH):
1.5V~4.2V
-
Propagation Delay Time:
17ns@6V,50pF
-
Quiescent Current (Max):
1uA
-
Package:
SOT-353
-
Manufacturer:
onsemi
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Obsolete
-
Logic Type:
AND Gate
-
Number of Circuits:
1
-
Number of Inputs:
2
-
Features:
-
-
Voltage - Supply:
2V ~ 6V
-
Current - Quiescent (Max):
1µA
-
Current - Output High, Low:
2.6mA, 2.6mA
-
Logic Level - Low:
0.5V ~ 1.8V
-
Logic Level - High:
1.5V ~ 4.2V
-
Max Propagation Delay @ V, Max CL:
17ns @ 6V, 50pF
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
SC-88A (SC-70-5/SOT-353)
-
Package / Case:
5-TSSOP, SC-70-5, SOT-353
-
Base Part Number:
MC74HC1G08
-
detail:
AND Gate IC 1 Channel SC-88A (SC-70-5/SOT-353)
