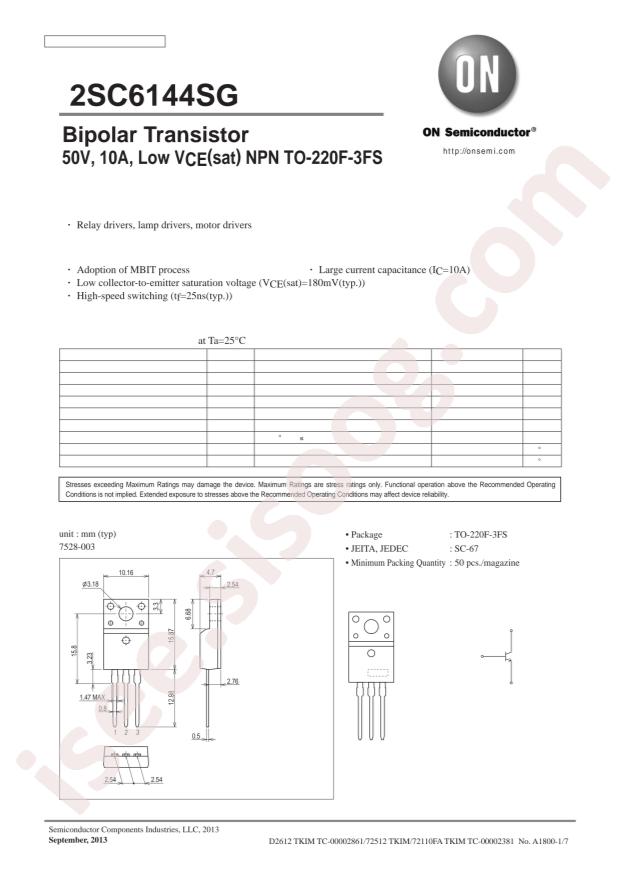

دیتاشیت 2SC6144SG
مشخصات دیتاشیت
| نام دیتاشیت |
2SC6144SG
|
| حجم فایل |
239.813
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
7
|
مشخصات
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
onsemi 2SC6144SG
-
Transistor Type:
NPN
-
Operating Temperature:
+150°C@(Tj)
-
Collector Current (Ic):
10A
-
Power Dissipation (Pd):
25W
-
Transition Frequency (fT):
330MHz
-
DC Current Gain (hFE@Ic,Vce):
200@270mA,2V
-
Collector Cut-Off Current (Icbo):
10uA
-
Collector-Emitter Breakdown Voltage (Vceo):
50V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
180mV@6A,300mA
-
Package:
TO-220F
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Current - Collector (Ic) (Max):
10A
-
Voltage - Collector Emitter Breakdown (Max):
50V
-
Vce Saturation (Max) @ Ib, Ic:
360mV @ 300mA, 6A
-
Current - Collector Cutoff (Max):
10µA (ICBO)
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
200 @ 270mA, 2V
-
Power - Max:
25W
-
Frequency - Transition:
330MHz
-
Mounting Type:
Through Hole
-
Package / Case:
TO-220-3 Full Pack
-
Supplier Device Package:
TO-220F-3FS
-
Base Part Number:
2SC6144
-
detail:
Bipolar (BJT) Transistor NPN 50V 10A 330MHz 25W Through Hole TO-220F-3FS
