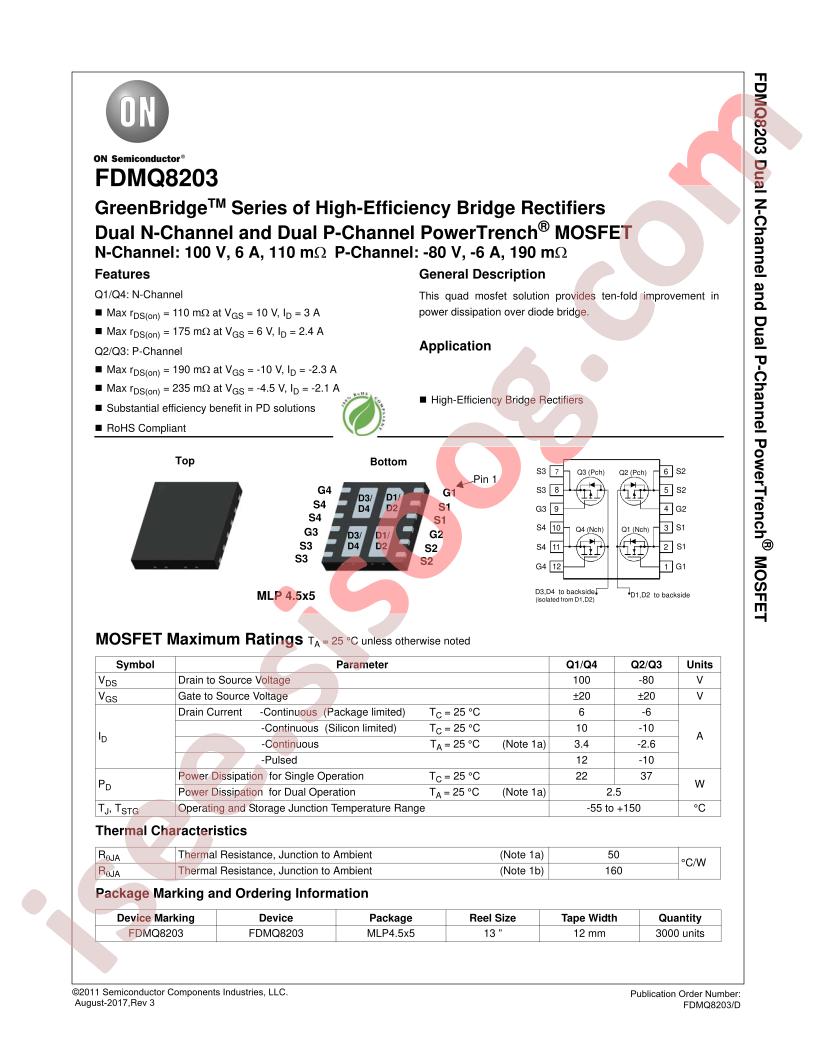

FDMQ8203 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
FDMQ8203
|
|
حجم فایل
|
396.915
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
10
|
مشخصات فنی
-
Manufacturer:
ON Semiconductor
-
Series:
GreenBridge™ PowerTrench®
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
2 N and 2 P-Channel (H-Bridge)
-
FET Feature:
Logic Level Gate
-
Drain to Source Voltage (Vdss):
100V, 80V
-
Current - Continuous Drain (Id) @ 25°C:
3.4A, 2.6A
-
Rds On (Max) @ Id, Vgs:
110mOhm @ 3A, 10V
-
Vgs(th) (Max) @ Id:
4V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
5nC @ 10V
-
Input Capacitance (Ciss) (Max) @ Vds:
210pF @ 50V
-
Power - Max:
2.5W
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Surface Mount
-
Package / Case:
12-WDFN Exposed Pad
-
Supplier Device Package:
12-MLP (5x4.5)
-
Base Part Number:
FDMQ82
-
detail:
Mosfet Array 2 N and 2 P-Channel (H-Bridge) 100V, 80V 3.4A, 2.6A 2.5W Surface Mount 12-MLP (5x4.5)
