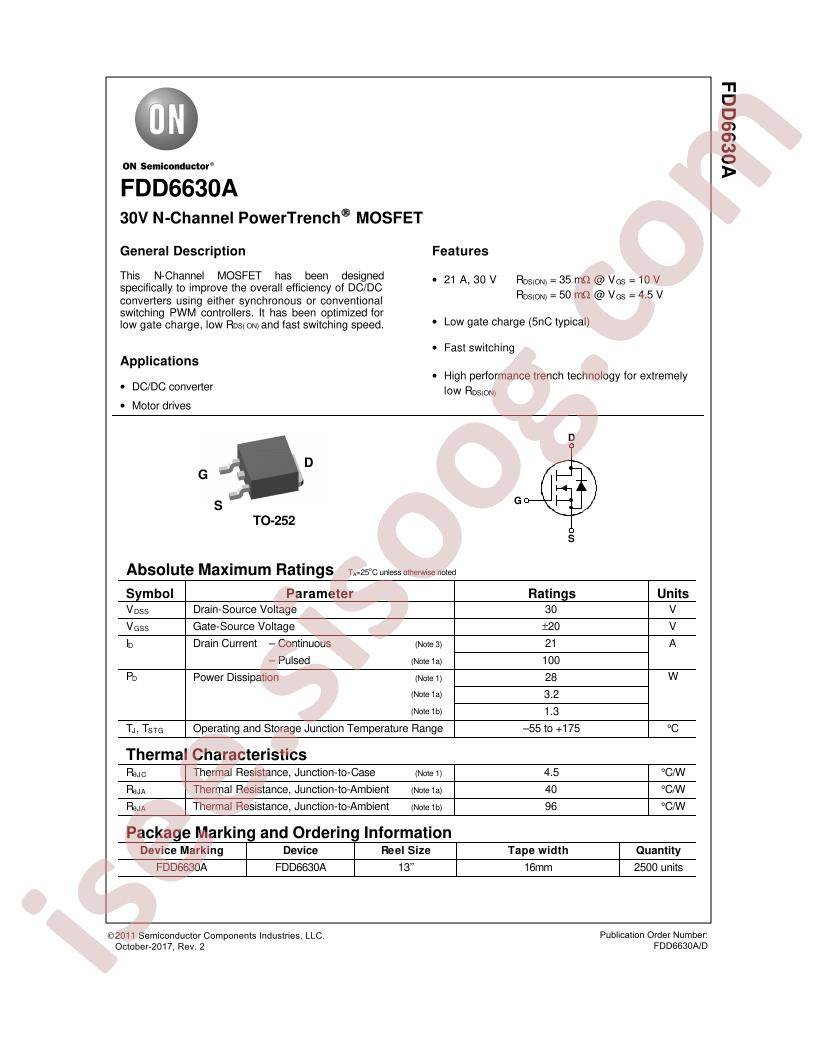

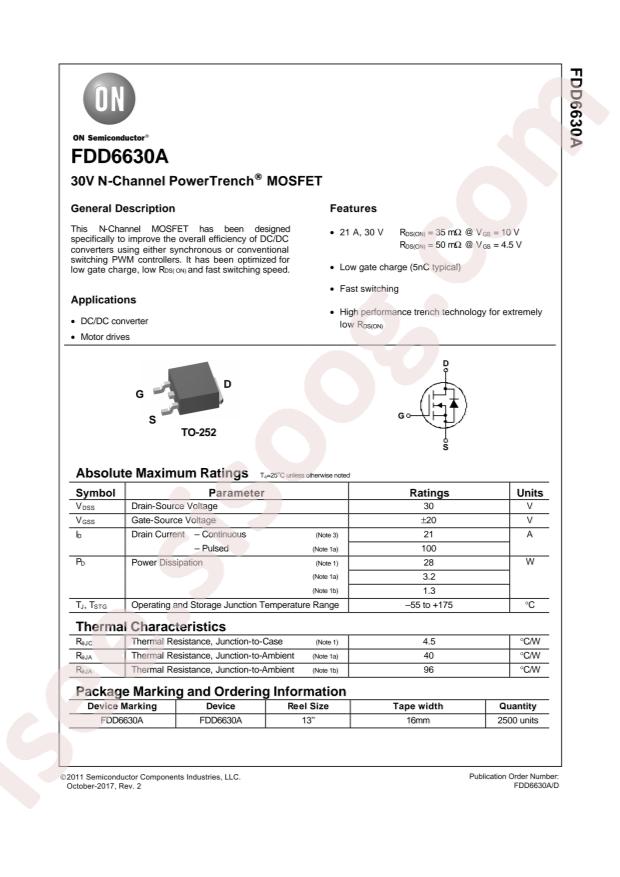

دیتاشیت FDD6630A
مشخصات دیتاشیت
| نام دیتاشیت |
FDD6630A
|
| حجم فایل |
360.151
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
5
|
مشخصات
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi FDD6630A
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
28W
-
Total Gate Charge (Qg@Vgs):
7nC@5V
-
Drain Source Voltage (Vdss):
30V
-
Input Capacitance (Ciss@Vds):
462pF@15V
-
Continuous Drain Current (Id):
21A
-
Gate Threshold Voltage (Vgs(th)@Id):
3V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
35mΩ@10V,7.6A
-
Package:
TO-252
-
Manufacturer:
onsemi
-
Series:
PowerTrench®
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
30V
-
Current - Continuous Drain (Id) @ 25°C:
21A (Ta)
-
Drive Voltage (Max Rds On, Min Rds On):
4.5V, 10V
-
Rds On (Max) @ Id, Vgs:
35mOhm @ 7.6A, 10V
-
Vgs(th) (Max) @ Id:
3V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
7nC @ 5V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
462pF @ 15V
-
FET Feature:
-
-
Power Dissipation (Max):
28W (Ta)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
TO-252
-
Package / Case:
TO-252-3, DPak (2 Leads + Tab), SC-63
-
Base Part Number:
FDD663
-
detail:
N-Channel 30V 21A (Ta) 28W (Ta) Surface Mount TO-252
