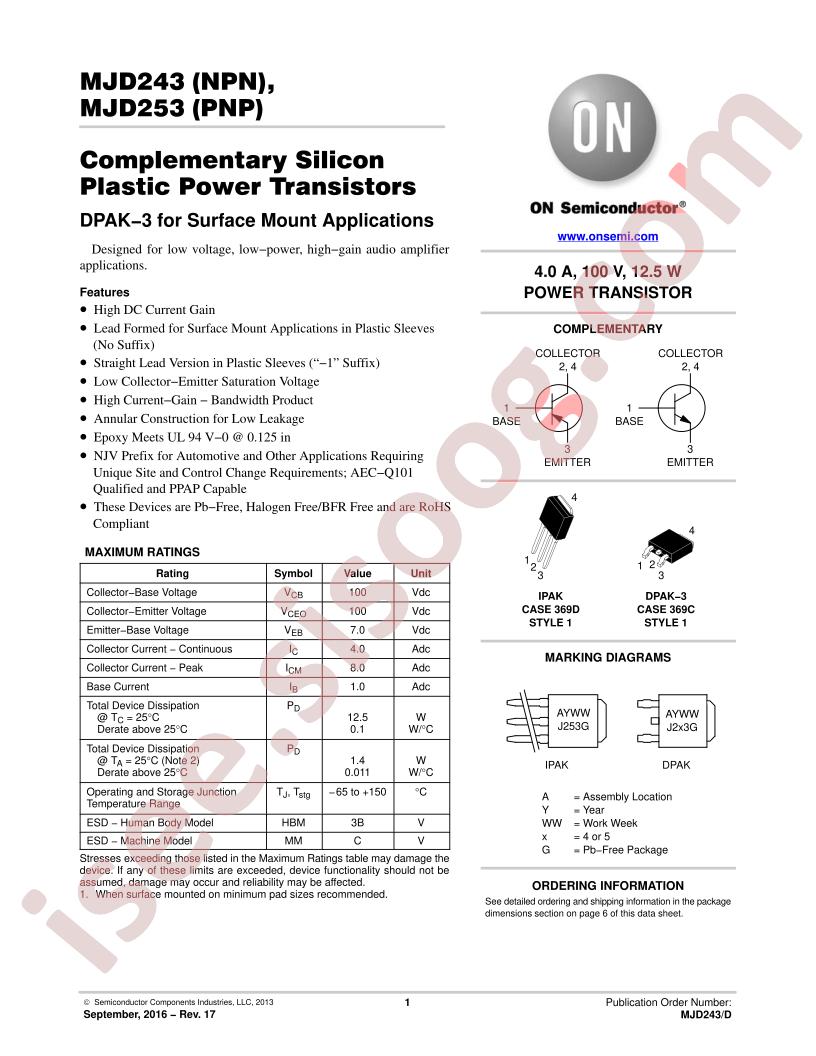

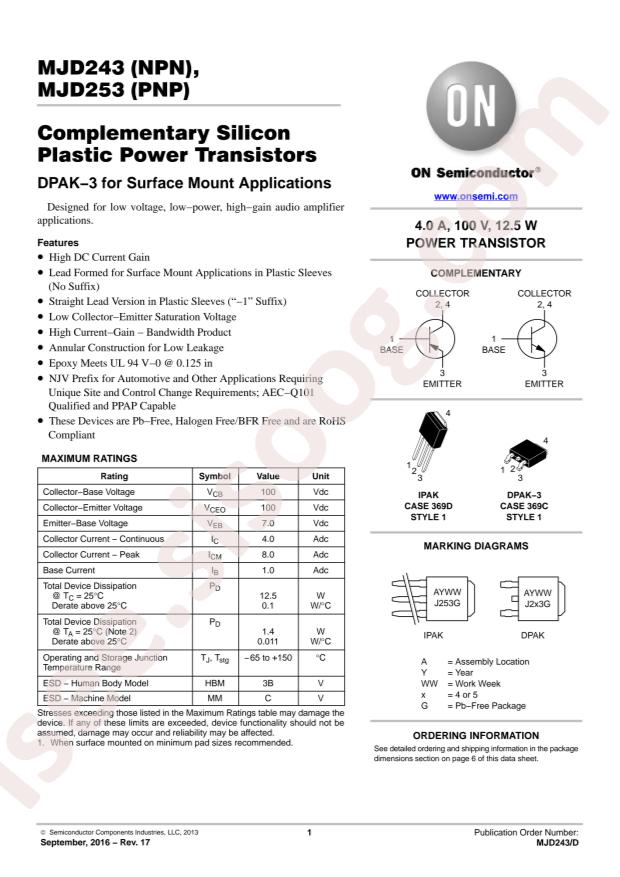

دیتاشیت MJD253T4G
مشخصات دیتاشیت
| نام دیتاشیت |
MJD243,253
|
| حجم فایل |
109.881
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
8
|
مشخصات
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
onsemi MJD253T4G
-
Transistor Type:
PNP
-
Operating Temperature:
-65°C~+150°C@(Tj)
-
Collector Current (Ic):
4A
-
Power Dissipation (Pd):
1.4W
-
Transition Frequency (fT):
40MHz
-
DC Current Gain (hFE@Ic,Vce):
40@200mA,1V
-
Collector Cut-Off Current (Icbo):
100nA
-
Collector-Emitter Breakdown Voltage (Vceo):
100V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
600mV@1A,100mA
-
Package:
TO-252
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Current - Collector (Ic) (Max):
4A
-
Voltage - Collector Emitter Breakdown (Max):
100V
-
Vce Saturation (Max) @ Ib, Ic:
600mV @ 100mA, 1A
-
Current - Collector Cutoff (Max):
100nA (ICBO)
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
40 @ 200mA, 1V
-
Power - Max:
1.4W
-
Frequency - Transition:
40MHz
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-252-3, DPak (2 Leads + Tab), SC-63
-
Supplier Device Package:
DPAK
-
Base Part Number:
MJD25
-
detail:
Bipolar (BJT) Transistor PNP 100V 4A 40MHz 1.4W Surface Mount DPAK
