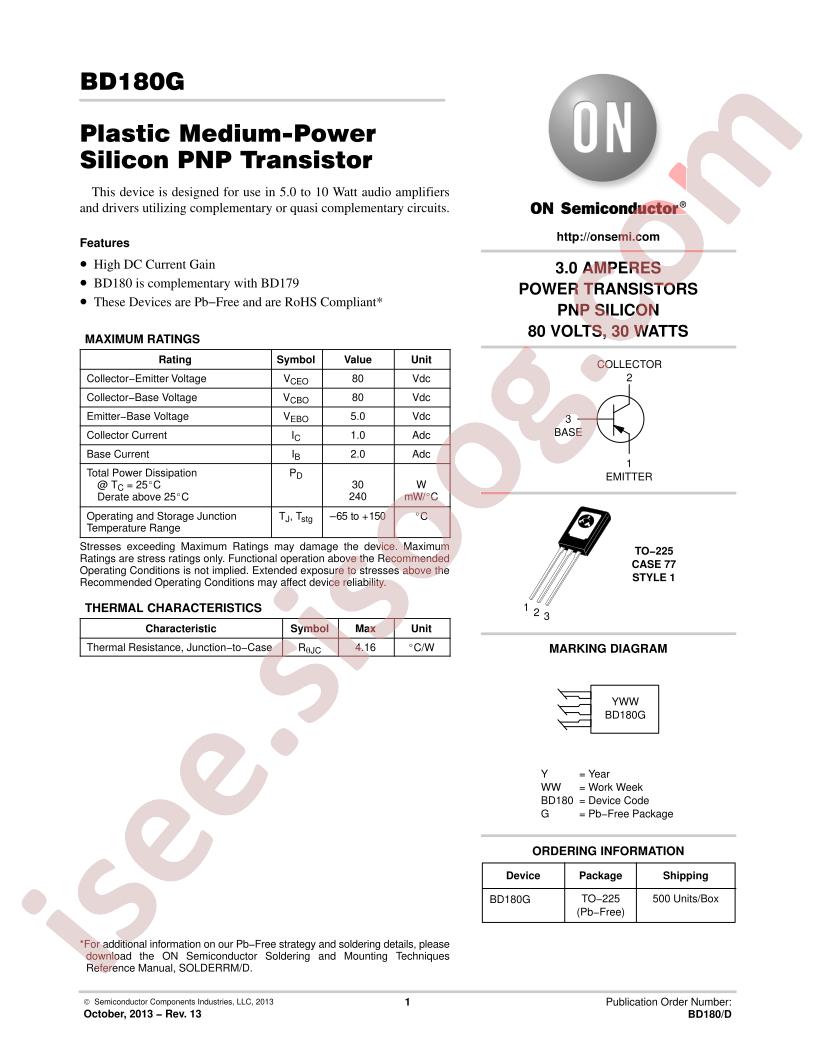

دیتاشیت BD180G
مشخصات دیتاشیت
| نام دیتاشیت |
BD180
|
| حجم فایل |
86.868
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
4
|
مشخصات
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
onsemi BD180G
-
Transistor Type:
PNP
-
Operating Temperature:
-65°C~+150°C@(Tj)
-
Collector Current (Ic):
1A
-
Power Dissipation (Pd):
30W
-
Transition Frequency (fT):
3MHz
-
DC Current Gain (hFE@Ic,Vce):
40@150mA,2V
-
Collector Cut-Off Current (Icbo):
1mA
-
Collector-Emitter Breakdown Voltage (Vceo):
80V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
800mV@1A,100mA
-
Package:
TO-225
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Bulk
-
Part Status:
Obsolete
-
Current - Collector (Ic) (Max):
3A
-
Voltage - Collector Emitter Breakdown (Max):
80V
-
Vce Saturation (Max) @ Ib, Ic:
800mV @ 100mA, 1A
-
Current - Collector Cutoff (Max):
1mA (ICBO)
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
40 @ 150mA, 2V
-
Power - Max:
30W
-
Frequency - Transition:
3MHz
-
Mounting Type:
Through Hole
-
Package / Case:
TO-225AA, TO-126-3
-
Supplier Device Package:
TO-225AA
-
Base Part Number:
BD180
-
detail:
Bipolar (BJT) Transistor PNP 80V 3A 3MHz 30W Through Hole TO-225AA
