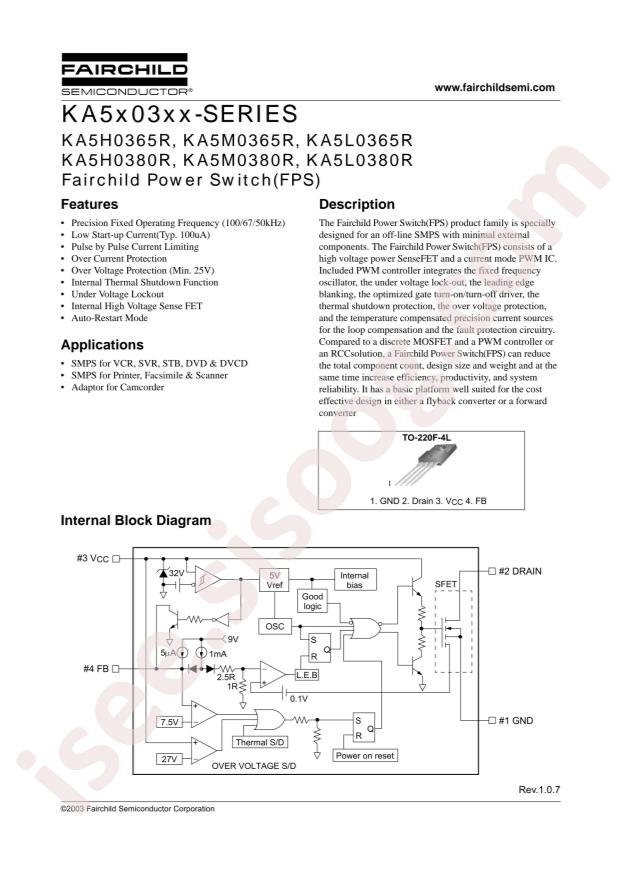

دیتاشیت KA5L0380RYDTU
مشخصات دیتاشیت
| نام دیتاشیت |
KA5L0380RYDTU
|
| حجم فایل |
76.016
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
15
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/AC-DC Controllers & Regulators
-
Datasheet:
onsemi KA5L0380RYDTU
-
Package:
TO-220F-4
-
Manufacturer:
onsemi
-
Series:
FPS™
-
Packaging:
Tube
-
Part Status:
Not For New Designs
-
Output Isolation:
-
-
Internal Switch(s):
Yes
-
Voltage - Breakdown:
800V
-
Topology:
Flyback, Forward
-
Voltage - Start Up:
15V
-
Voltage - Supply (Vcc/Vdd):
9V ~ 30V
-
Duty Cycle:
77%
-
Frequency - Switching:
50kHz
-
Fault Protection:
Current Limiting, Over Temperature, Over Voltage
-
Control Features:
-
-
Operating Temperature:
-40°C ~ 85°C (TA)
-
Package / Case:
TO-220-4 Full Pack (Formed Leads)
-
Supplier Device Package:
TO-220F-4L (Forming)
-
Mounting Type:
Through Hole
-
Base Part Number:
KA5L03
-
detail:
Converter Offline Flyback, Forward Topology 50kHz TO-220F-4L (Forming)
