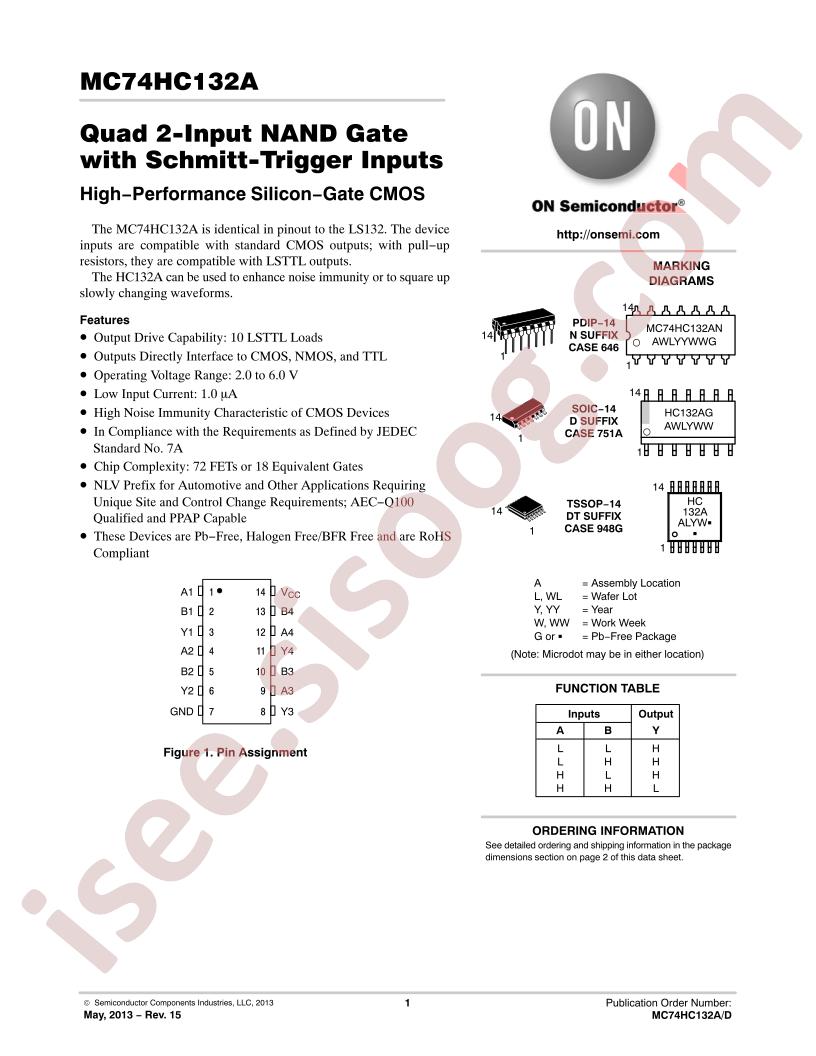

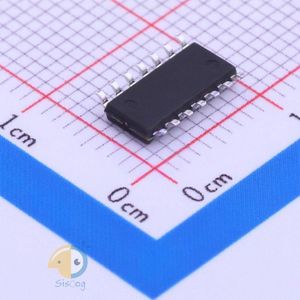

دیتاشیت MC74HC132ADR2G
مشخصات دیتاشیت
| نام دیتاشیت |
MC74HC132A
|
| حجم فایل |
143.103
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
9
|
مشخصات
-
RoHS:
true
-
Series:
74HC
-
Category:
Logic ICs/Gates
-
Datasheet:
onsemi MC74HC132ADR2G
-
Sink Current:
5.2mA
-
Source Current:
5.2mA
-
Supply Voltage:
2V~6V
-
Logic Gate Type:
NAND Gates
-
Number of Channels:
4
-
Low Level Range (VIL):
0.3V~1.2V
-
Operating Temperature:
-55°C~+125°C
-
High Level Range (VIH):
1.5V~4.2V
-
Propagation Delay Time:
21ns@6V,50pF
-
Quiescent Current (Max):
1uA
-
Package:
SOP-14
-
Manufacturer:
onsemi
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Logic Type:
NAND Gate
-
Number of Circuits:
4
-
Number of Inputs:
2
-
Features:
Schmitt Trigger
-
Voltage - Supply:
2V ~ 6V
-
Current - Quiescent (Max):
1µA
-
Current - Output High, Low:
5.2mA, 5.2mA
-
Logic Level - Low:
0.3V ~ 1.2V
-
Logic Level - High:
1.5V ~ 4.2V
-
Max Propagation Delay @ V, Max CL:
21ns @ 6V, 50pF
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
14-SOIC
-
Package / Case:
14-SOIC (0.154", 3.90mm Width)
-
Base Part Number:
MC74HC132
-
detail:
NAND Gate IC 4 Channel Schmitt Trigger 14-SOIC
