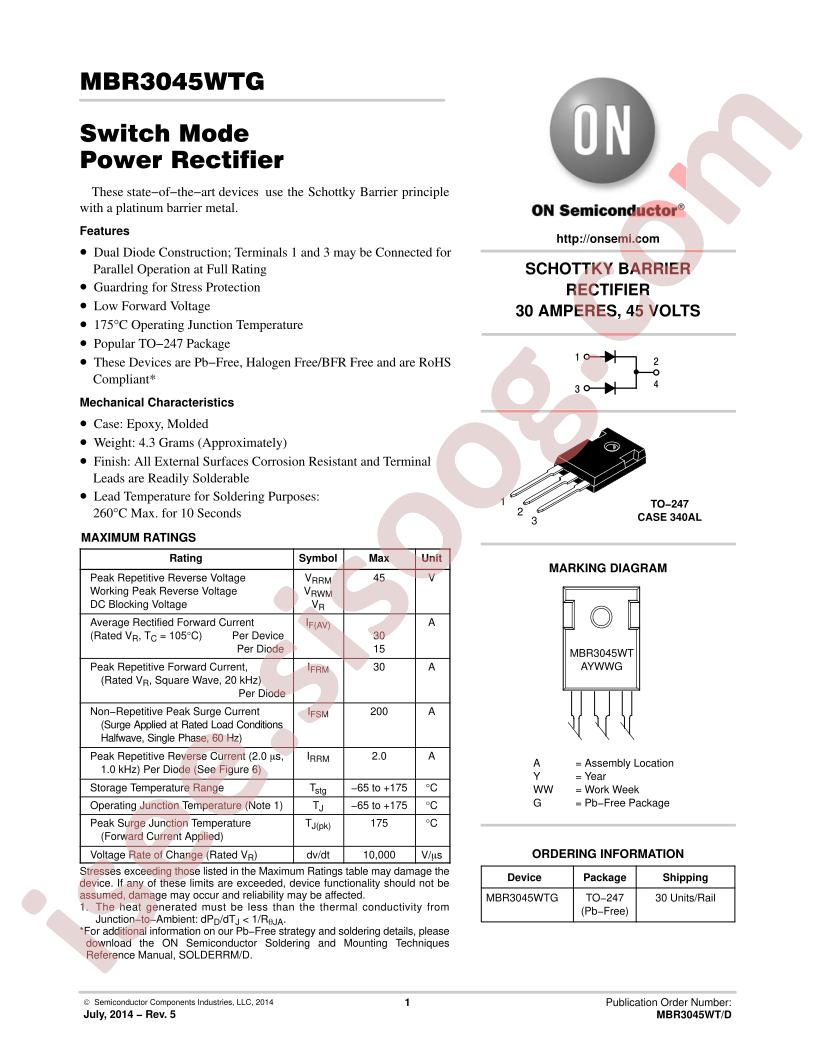

دیتاشیت MBR3045WT
مشخصات دیتاشیت
| نام دیتاشیت |
MBR3045WT
|
| حجم فایل |
62.67
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
4
|
مشخصات
-
Manufacturer:
ON Semiconductor
-
Series:
SWITCHMODE™
-
Packaging:
Tube
-
Part Status:
Obsolete
-
Diode Configuration:
1 Pair Common Cathode
-
Diode Type:
Schottky
-
Voltage - DC Reverse (Vr) (Max):
45V
-
Current - Average Rectified (Io) (per Diode):
15A
-
Voltage - Forward (Vf) (Max) @ If:
760mV @ 30A
-
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
-
Current - Reverse Leakage @ Vr:
1mA @ 45V
-
Operating Temperature - Junction:
-65°C ~ 175°C
-
Mounting Type:
Through Hole
-
Package / Case:
TO-247-3
-
Supplier Device Package:
TO-247
-
Base Part Number:
MBR3045
-
detail:
Diode Array 1 Pair Common Cathode Schottky 45V 15A Through Hole TO-247-3
