دیتاشیت NTR4003NT1G
مشخصات دیتاشیت
| نام دیتاشیت | NTR4003N, NVR4003N |
|---|---|
| حجم فایل | 118.298 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 6 |
دانلود دیتاشیت NTR4003N, NVR4003N |

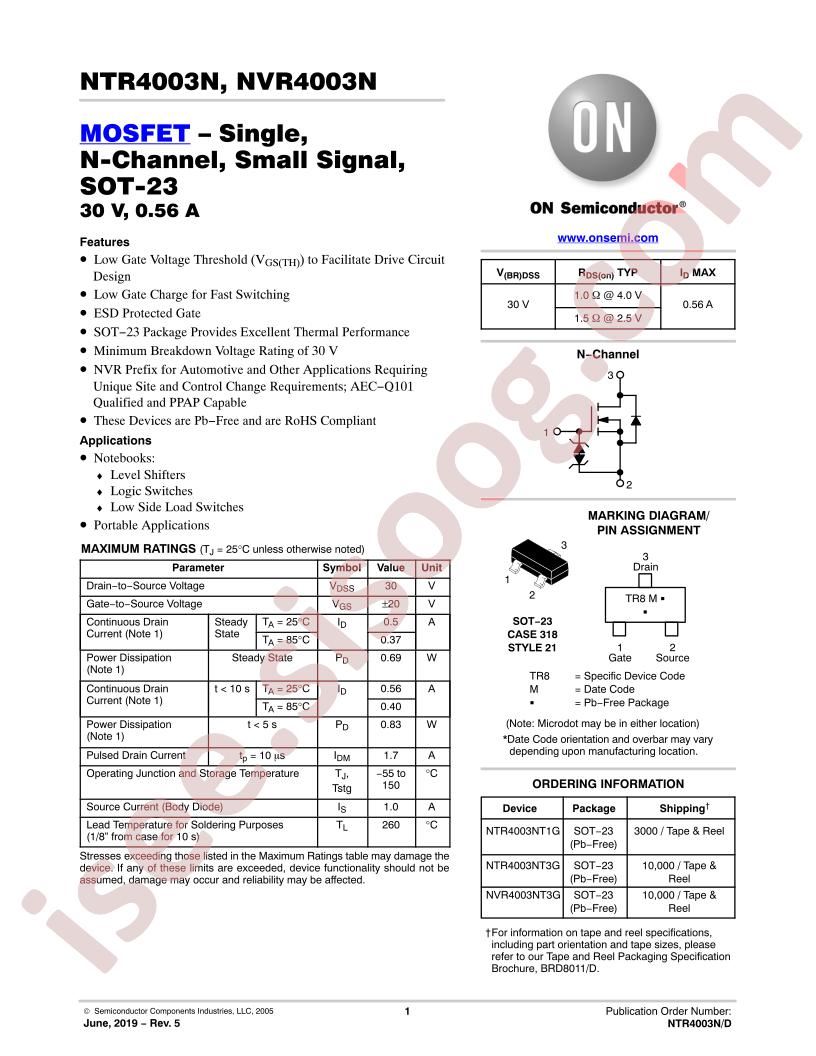

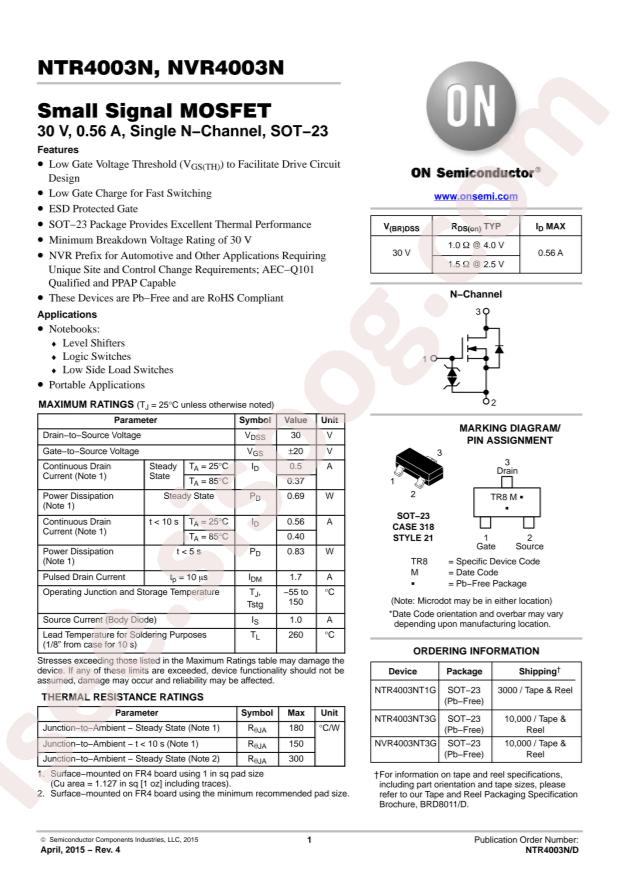

NTR4003N, NVR4003N Datasheet |
|---|
مشخصات
- RoHS: true
- Type: N Channel
- Category: Triode/MOS Tube/Transistor/MOSFETs
- Datasheet: onsemi NTR4003NT1G
- Operating Temperature: -55°C~+150°C@(Tj)
- Power Dissipation (Pd): 690mW
- Total Gate Charge (Qg@Vgs): 1.15nC@5V
- Drain Source Voltage (Vdss): 30V
- Input Capacitance (Ciss@Vds): 21pF@5V
- Continuous Drain Current (Id): 500mA
- Gate Threshold Voltage (Vgs(th)@Id): 1.4V@250uA
- Drain Source On Resistance (RDS(on)@Vgs,Id): 1.5Ω@4V,10mA
- Package: SOT-23(TO-236)
- Manufacturer: onsemi
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30V
- Current - Continuous Drain (Id) @ 25°C: 500mA (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4V
- Rds On (Max) @ Id, Vgs: 1.5Ohm @ 10mA, 4V
- Vgs(th) (Max) @ Id: 1.4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 1.15nC @ 5V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 21pF @ 5V
- FET Feature: -
- Power Dissipation (Max): 690mW (Ta)
- Mounting Type: Surface Mount
- Supplier Device Package: SOT-23-3 (TO-236)
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Base Part Number: NTR400
- detail: N-Channel 30V 500mA (Ta) 690mW (Ta) Surface Mount SOT-23-3 (TO-236)
