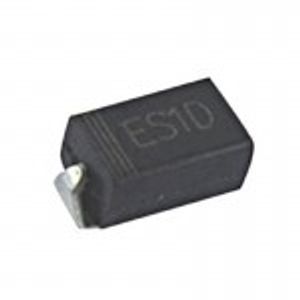

- ES1D
ES1D Datasheet
Datasheet specifications
| Datasheet's name | ES1D |
|---|---|
| File size | 93.73 KB |
| File type | |
| Number of pages | 2 |
Download Datasheet ES1D |
Download Datasheet |
|---|
Other documentations
ES1A - ES1D 6 pages
ES1D 3 pages
ES1D 2 pages
ES1D 3 pages
ES1D 3 pages
ES1D 3 pages
ES1D 2 pages
ES1D 2 pages
ES1D 3 pages
ES1D 2 pages
ES1D 3 pages
ES1D 3 pages
ES1D 7 pages
ES1D 6 pages
ES1D 2 pages
ES1D 3 pages
ES1D 4 pages
ES1D 2 pages
ES1D 5 pages
ES1D 3 pages
ES1D 2 pages
ES1D 2 pages
ES1D 2 pages
ES1D 5 pages
Technical specifications
- RoHS: true
- Category: Diodes/Diodes - Fast Recovery Rectifiers
- Datasheet: DIYI Elec Tech ES1D
- Diode Configuration: -
- Reverse Voltage (Vr): 200V
- Operating Temperature: -55°C~+150°C@(Tj)
- Forward Voltage (Vf@If): 920mV@1A
- Reverse Leakage Current: 5uA@200V
- Reverse Recovery Time (trr): 25ns
- Average Rectified Current (Io): 1A
- Package: SMA
- Manufacturer: DIYI Elec Tech
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 200V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 920mV @ 1A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Current - Reverse Leakage @ Vr: 5µA @ 200V
- Capacitance @ Vr, F: 7pF @ 4V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: DO-214AC, SMA
- Supplier Device Package: SMA (DO-214AC)
- Operating Temperature - Junction: -55°C ~ 150°C
- Base Part Number: ES1
